Monitoring and control relays are crucial elements in modern electrical systems, responsible for ensuring safety, reliability, and efficient operation. These relays go beyond simple on/off switches, actively monitoring various electrical parameters, such as voltage, current, frequency, and level. They trigger pre-defined actions based on these monitored conditions, acting as intelligent intermediaries to protect equipment, prevent faults, and automate processes.

002471409

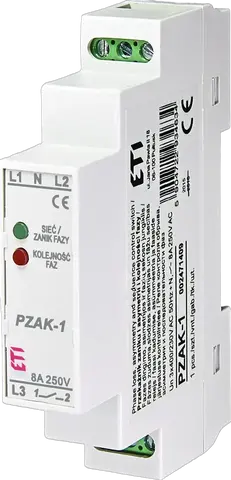

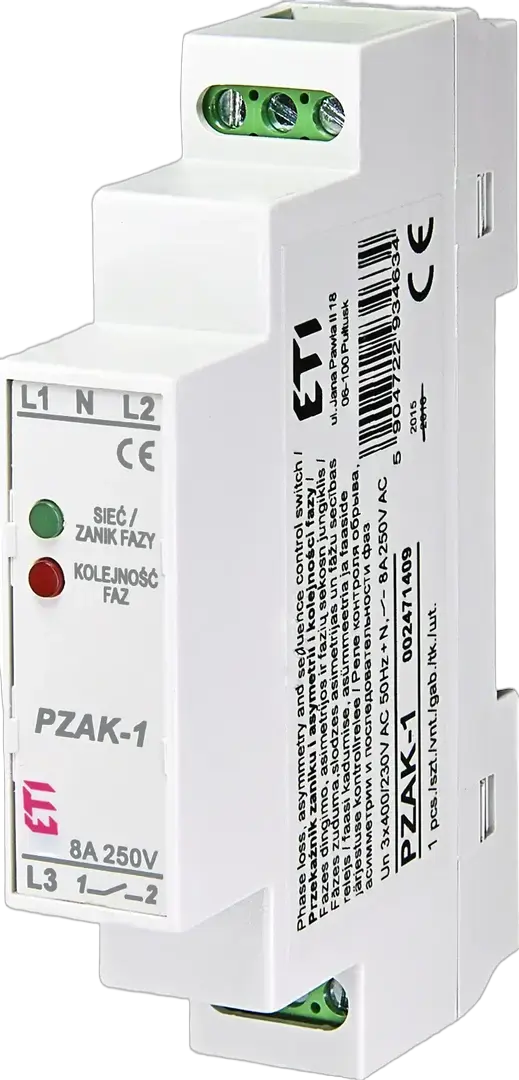

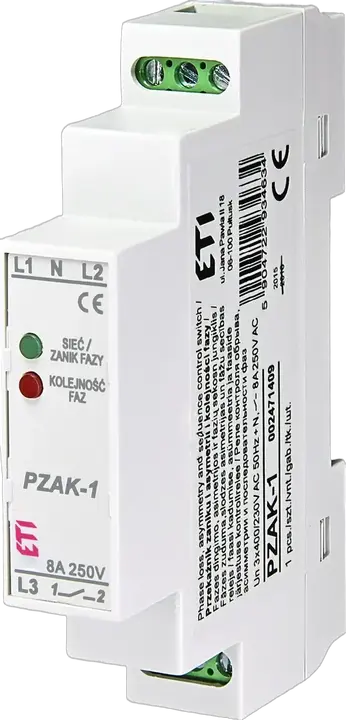

Attēls no PZAK-1

PZAK-1 Vadības relejs

ETI kods:: 002471409
Augstums:: 90 mm
Platums:: 18 mm
Kategorija:: Phase monitoring relay
Kataloga grupa 1:: Įtampos kontrolės relės
Kataloga grupa 2:: Phase sequence monitoring relay
Tips:: Phase monitoring relay
Funkcija:: Monitoring and Control relays
Barošanas spriegums (V):: 400 V
Kontroles veids:: Sequence phase, Voltage imbalance, Phase failure
Kontaktu skaits:: 1
Sprieguma veids:: AC
Maksimālā kravnesība AC1 (VA):: 2 500 VA
Nominālā strāva:: 8 A
NO kontaktu skaits:: 1

Produkts

EAN code for a single product: 5904722934634
Svars: 0,075 kg
Stock unit of measure: pcs

Transporta iepakojums

Intermediate packaging quantity: 10 pcs
EAN code for a intermediate packaging: 5904722934641
Intermediate packaging weight: 0,714 kg
Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895792338
Transport packaging weight: 0,722 kg
Transport packaging volume: 2,7 dm³
Pallet quantity: 4 800 pcs
Customs tariff: 85364900

Phase failure detection: Jā
Width: 18 mm
Number of contacts as normally closed contact: 1
Voltage type (operating voltage): AC
Phase sequence monitoring: Jā
Phase imbalance monitoring: Jā
Rated switch current: 8 A
Depth: 65 mm
Type of electric connection: Clip connection
Height: 90 mm
Voltage measuring range(Min): 175 V
Supply voltage AC 50 Hz(Min): 400 V
Supply voltage AC 50 Hz(Max): 400 V
Voltage measuring range(Max): 400 V

ETIM klasifikācija – versija 9.0
