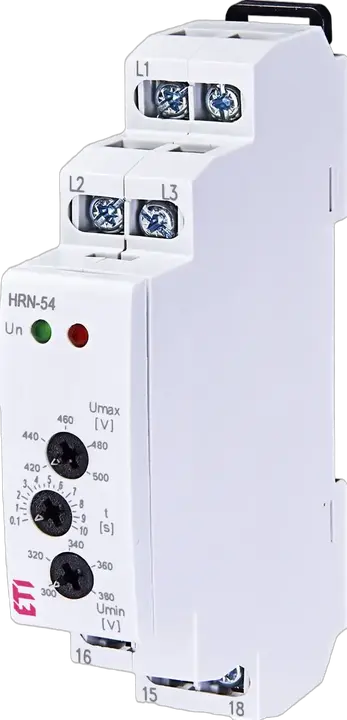

HRN-54 Vadības relejs

ETI kods:: 002471416
Augstums:: 90 mm
Platums:: 18 mm
Kategorija:: Over/undervoltage monitoring relay HRN-54, HRN-54N
Kataloga grupa 1:: Įtampos kontrolės relės
Kataloga grupa 2:: Over/undervoltage monitoring relay
Tips:: Over/undervoltage monitoring relay HRN-54, HRN-54N
Funkcija:: Monitoring and Control relays
Barošanas spriegums (V):: 400 V
Kontroles veids:: Sequence phase, Phase failure
Kontaktu skaits:: 1
Sprieguma veids:: AC
Maksimālā kravnesība AC1 (VA):: 2 500 VA
Nominālā strāva:: 8 A
Kontaktu veids:: 1xCO
Kontaktu skaits:: 1

Piederumi

Produkts

Svars: 0,07 kg
Net width: 17,5 mm
Net height: 91,3 mm
Net depth: 64,26 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895452195
Basic packaging weight: 0,06 kg
Basic Packaging Dimensions Height: 70 mm
Basic Packaging Dimensions Width: 97 mm
Basic Packaging Dimensions Depth: 25 mm
Basic packaging volume: 0,17 dm³

Transporta iepakojums

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895452201
Transport packaging weight: 0,74 kg
Transport Packaging Dimensions Height: 102 mm
Transport Packaging Dimensions Width: 284 mm
Transport Packaging Dimensions Depth: 75 mm
Transport packaging volume: 2,173 dm³
Pallet quantity: 4 600 pcs
Customs tariff: 85364900

Single-phase under voltage possible: Jā
Phase failure detection: Jā
Width: 18 mm
Three-phase under voltage possible: Jā
Single-phase hysteresis possible: Jā
Max. permitted delay-on energization time: 10 s
Min. adjustable delay-on energization time: 0,1 s
Voltage type (operating voltage): AC
Max. permitted off-delay time: 10 s
Phase sequence monitoring: Jā
Voltage type (supply voltage): AC
Min. adjustable off-delay time: 0,1 s
Function under voltage detection: Jā
Three-phase over voltage possible: Jā
Type of voltage measuring range: AC
Phase imbalance monitoring: Jā
Rated switch current: 8 A
Single-phase over voltage possible: Jā
Function over voltage detection: Jā
Depth: 64 mm
Three-phase hysteresis possible: Jā
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Operating voltage AC 50 Hz(Min): 400 V
Voltage measuring range(Min): 300 V
Operating voltage AC 60 Hz(Min): 400 V
Supply voltage AC 60 Hz(Min): 400 V
Voltage measuring range 2(Min): 300 V
Voltage measuring range 1(Min): 420 V
Supply voltage AC 50 Hz(Min): 400 V
Voltage measuring range 1(Max): 500 V
Supply voltage AC 50 Hz(Max): 400 V
Voltage measuring range(Max): 500 V
Operating voltage AC 60 Hz(Max): 400 V
Operating voltage AC 50 Hz(Max): 400 V
Voltage measuring range 2(Max): 380 V
Supply voltage AC 60 Hz(Max): 400 V

ETIM klasifikācija – versija 9.0

Eplan

Programmatūra tiek nodrošināta tāda, kāda tā ir, bez jebkādām garantijām. Autors nav pienākumā sniegt atbalstu, servisu, labojumus vai jauninājumus bezmaksas programmatūrai vai draiberiem.

002471416 Vadības relejs HRN-54 EVE/ETIREL Control equipment Relays Relays Over/undervoltage monitoring relay Over/undervoltage monitoring relay Internacionāls Automatizācijas, signalizācijas un vadības ierīces Monitoringa releji Kontaktu veids: 1xCO NO/NC kontaktu skaits: 0 Sprieguma veids: AC Kontaktu skaits: 1 Kontaktu skaits: 1 Kontroles veids: Phase failure, Sequence phase, Umax, Umin Funkcija: Monitoring and Control relays Maksimālā kravnesība AC1 (VA): 2500 VA NO kontaktu skaits: 0 Barošanas spriegums (V): 400 V-400 V Nominālā strāva: 8 A/8 A DC nominālais vadības barošanas spriegums Uc (V): 0 V-0 V Vadības relejs TOWAR Funkcija: Monitoring and Control relays Barošanas spriegums (V): 400 V-400 V Kontroles veids: Phase failure, Sequence phase, Umax, Umin Kontaktu skaits: 1 Sprieguma veids: AC Nominālā strāva: 8 A/8 A Maksimālā kravnesība AC1 (VA): 2500 VA Kontaktu veids: 1xCO NO/NC kontaktu skaits: 0 Kontaktu skaits: 1 NO kontaktu skaits: 0 DC nominālais vadības barošanas spriegums Uc (V): 0 V-0 V
