Monitoring and control relays are crucial elements in modern electrical systems, responsible for ensuring safety, reliability, and efficient operation. These relays go beyond simple on/off switches, actively monitoring various electrical parameters, such as voltage, current, frequency, and level. They trigger pre-defined actions based on these monitored conditions, acting as intelligent intermediaries to protect equipment, prevent faults, and automate processes.

002471432

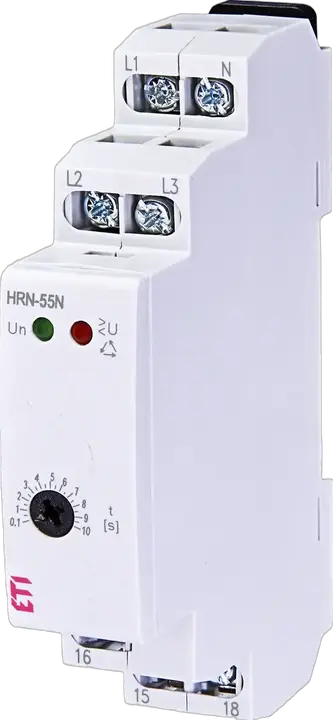

Attēls no HRN-55N

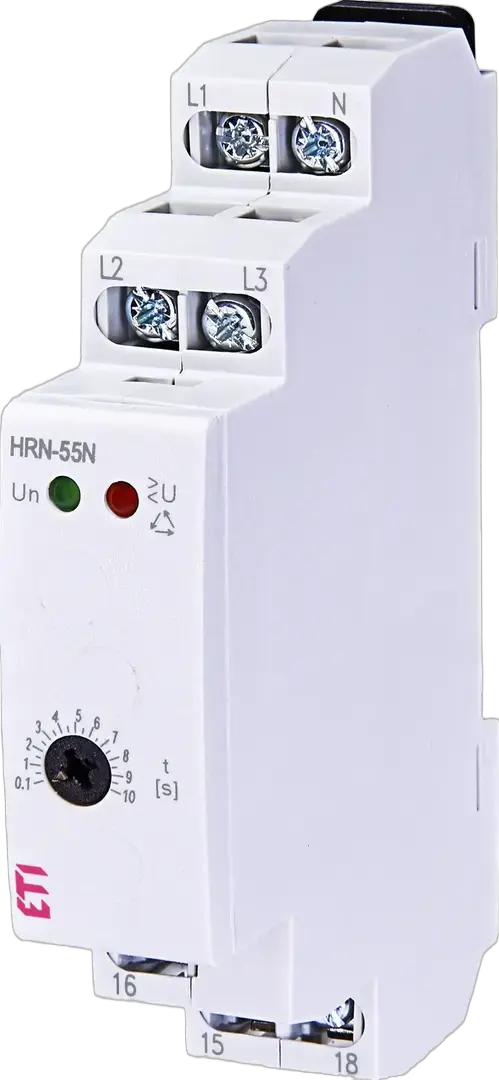

HRN-55N Vadības relejs

ETI kods:: 002471432
Kategorija:: Voltage monitoring relay
Kataloga grupa 1:: Įtampos kontrolės relės
Kataloga grupa 2:: Phase sequence monitoring relay
Tips:: Voltage monitoring relay
Funkcija:: Monitoring and Control relays
Barošanas spriegums (V):: 400 V
Kontroles veids:: Sequence phase, Phase and neutral failure
Kontaktu skaits:: 1
Sprieguma veids:: AC
Maksimālā kravnesība AC1 (VA):: 2 500 VA
Nominālā strāva:: 8 A
Kontaktu veids:: 1xCO
Kontaktu skaits:: 1

Produkts

Svars: 0,066 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895473657
Basic packaging weight: 0,066 kg
Basic packaging volume: 0,13 dm³

Transporta iepakojums

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895473664
Transport packaging weight: 0,66 kg
Transport packaging volume: 1,3 dm³
Pallet quantity: 12 120 pcs
Customs tariff: 85364900

Single-phase under voltage possible: Jā
Width: 18 mm
Three-phase under voltage possible: Jā
Single-phase hysteresis possible: Jā
Max. permitted delay-on energization time: 10 s
Min. adjustable delay-on energization time: 0,1 s
Voltage type (operating voltage): AC
Max. permitted off-delay time: 10 s
Voltage type (supply voltage): AC
Min. adjustable off-delay time: 0,1 s
Three-phase over voltage possible: Jā
Type of voltage measuring range: AC
Rated switch current: 8 A
Single-phase over voltage possible: Jā
Depth: 64 mm
Three-phase hysteresis possible: Jā
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Operating voltage AC 50 Hz(Min): 230 V
Operating voltage AC 60 Hz(Min): 230 V
Supply voltage AC 60 Hz(Min): 230 V
Voltage measuring range 2(Min): 173 V
Voltage measuring range 1(Min): 242 V
Supply voltage AC 50 Hz(Min): 230 V
Voltage measuring range 1(Max): 288 V
Supply voltage AC 50 Hz(Max): 400 V
Operating voltage AC 60 Hz(Max): 400 V
Operating voltage AC 50 Hz(Max): 400 V
Voltage measuring range 2(Max): 219 V
Supply voltage AC 60 Hz(Max): 400 V

ETIM klasifikācija – versija 9.0

002471432 Vadības relejs HRN-55N EVE/ETIREL Control equipment Relays Relays Phase sequence monitoring relay Phase sequence monitoring relay Internacionāls Automatizācijas, signalizācijas un vadības ierīces Monitoringa releji Kontaktu veids: 1xCO NO/NC kontaktu skaits: 0 Sprieguma veids: AC Kontaktu skaits: 1 Kontaktu skaits: 1 Kontroles veids: Phase and neutral failure, Sequence phase, Umax, Umin Funkcija: Monitoring and Control relays Maksimālā kravnesība AC1 (VA): 2500 VA NO kontaktu skaits: 0 Barošanas spriegums (V): 400 V-400 V Nominālā strāva: 8 A/8 A DC nominālais vadības barošanas spriegums Uc (V): 0 V-0 V Vadības relejs Funkcija: Monitoring and Control relays Barošanas spriegums (V): 400 V-400 V Kontroles veids: Phase and neutral failure, Sequence phase, Umax, Umin Kontaktu skaits: 1 Sprieguma veids: AC Nominālā strāva: 8 A/8 A Maksimālā kravnesība AC1 (VA): 2500 VA Kontaktu veids: 1xCO NO/NC kontaktu skaits: 0 Kontaktu skaits: 1 NO kontaktu skaits: 0 DC nominālais vadības barošanas spriegums Uc (V): 0 V-0 V
