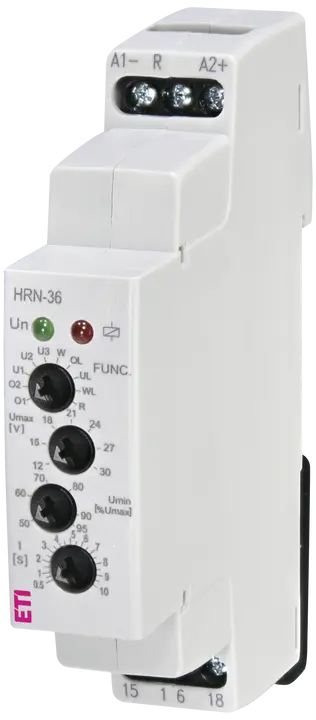

HRN-36 Vadības relejs

ETI kods:: 002471451
Funkcija:: Przekaźniki monitorujące i sterujące
Pieteikums:: Służy do nadzorowania wartości napięcia prądu stałego albo zmiennego w obwodach jednofazowych
Kontroles veids:: Umax, Umin
Barošanas spriegums (V):: 48-276 V
Sprieguma veids:: AC/DC
Max contact current (A):: 16 A
Nominālā strāva:: 16 A
Nominālā frekvence (Hz):: 50 Hz
Maksimālā kravnesība AC1 (VA):: 4 000 VA
Clamping cross-section (mm²):: 0.5-2.5 mm²
Montāžas veids:: DIN rail 35 mm
IP aizsardzība:: IP20, IP40
Kontaktu skaits:: 1
NO/NC kontaktu skaits:: 1
DC nominālais vadības barošanas spriegums Uc (V):: 12-30 V
Kontaktu veids:: 1xCO

Produkts

Svars: 0,09 kg
Net width: 17,6 mm
Net height: 93 mm
Net depth: 64,4 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400113429
Basic packaging weight: 0,095 kg
Basic Packaging Dimensions Height: 97 mm
Basic Packaging Dimensions Width: 25 mm
Basic Packaging Dimensions Depth: 70 mm
Basic packaging volume: 0,17 dm³

Transporta iepakojums

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838400113412
Transport packaging weight: 0,151 kg
Transport Packaging Dimensions Height: 284 mm
Transport Packaging Dimensions Width: 102 mm
Transport Packaging Dimensions Depth: 75 mm
Transport packaging volume: 2,173 dm³
Pallet quantity: 5 000 pcs
Customs tariff: 85364900

Single-phase under voltage possible: ✓
Width: 18 mm
Single-phase hysteresis possible: ✓
Max. permitted delay-on energization time: 10 s
Min. adjustable delay-on energization time: 0,5 s
Max. permitted off-delay time: 10 s
Min. adjustable off-delay time: 0,5 s
Contains function DC-voltage hysteresis: ✓
Type of voltage measuring range: DC
Single-phase over voltage possible: ✓
Contains function DC-under voltage: ✓
Contains function DC-over voltage: ✓
Depth: 65 mm
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Voltage measuring range 1(Min): 6 V
Voltage measuring range 1(Max): 30 V

ETIM klasifikācija – versija 9.0
