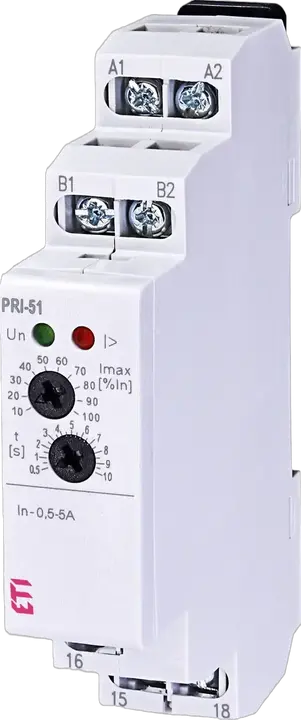

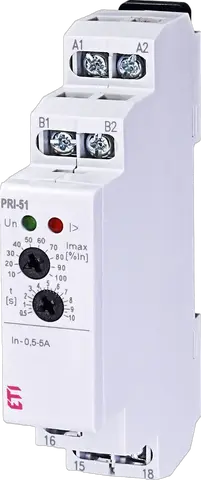

PRI-51/5 Vadības relejs

ETI kods:: 002471818
Funkcija:: Monitoring and Control relays
Pieteikums:: Designed for monitoring current flow in heating systems and supervising the current consumption of single-phase motors.
Kontroles veids:: Signalizacija ir valdymas
Barošanas spriegums (V):: 24-240 V
Sprieguma veids:: AC/DC
Max contact current (A):: 5 A
Nominālā strāva:: 0.5/5 A
Maksimālā kravnesība AC1 (VA):: 2 000 VA
Clamping cross-section (mm²):: 0.5-2.5 mm²
Montāžas veids:: DIN bėgelis
IP aizsardzība:: IP10, IP40
NO kontaktu skaits:: 1
Kontaktu skaits:: 1
NO/NC kontaktu skaits:: 1
DC nominālais vadības barošanas spriegums Uc (V):: 24 V
Kontaktu veids:: 1xCO
Kontaktu skaits:: 1

Produkts

Svars: 0,07 kg
Net width: 17,5 mm
Net height: 91,3 mm
Net depth: 64,26 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895424017
Basic packaging weight: 0,06 kg
Basic Packaging Dimensions Height: 25 mm
Basic Packaging Dimensions Width: 97 mm
Basic Packaging Dimensions Depth: 70 mm
Basic packaging volume: 0,17 dm³

Transporta iepakojums

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895424024
Transport packaging weight: 0,7 kg
Transport Packaging Dimensions Height: 102 mm
Transport Packaging Dimensions Width: 284 mm
Transport Packaging Dimensions Depth: 75 mm
Transport packaging volume: 2,173 dm³
Pallet quantity: 4 600 pcs
Customs tariff: 85364900

Width: 18 mm
Voltage type (operating voltage): AC/DC
Voltage type (supply voltage): AC/DC
Single-phase under current possible: ✓
Rated switch current: 8 A
Depth: 65 mm
Type of electric connection: Clip connection
Single-phase overcurrent possible: ✓
Number of contacts as change-over contact: 1
Height: 90 mm
Current measuring range(Min): 0,5 A
Supply voltage AC 50 Hz(Min): 24 V
Supply voltage AC 50 Hz(Max): 240 V
Current measuring range(Max): 5

ETIM klasifikācija – versija 9.0
