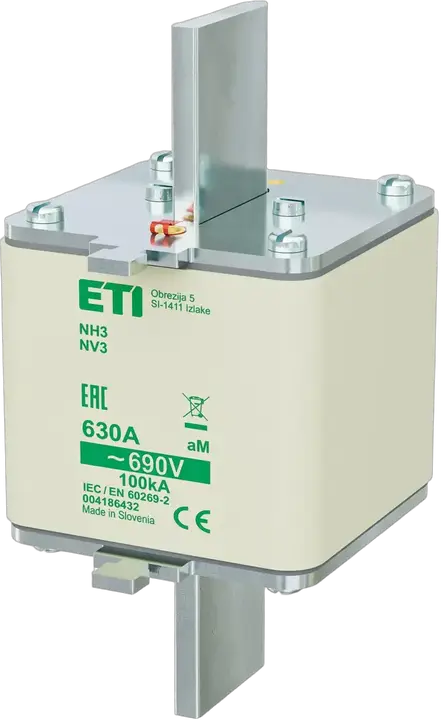

NH3 aM 630A/690V Drošinātājs

ETI kods:: 004186432
Tips:: NH
Izmērs:: NH3
Nominālā strāva:: 630 A
Raksturlielumi:: aM
Indikators:: Viršutinis saugiklio būsenos indikatorius
Nominālais maiņstrāvas spriegums:: 690 V
Atjungimo geba (AC) (kA):: 100 kA
Pd (W):: 50 W
Džoula integrālis (A2s):: 1 150 000
Darbības džoula integrālis(A2s):: 5 050 000
Standarti:: VDE 0636-2011
Pieteikums:: For relays, contactors and motors protection in case of short-circuit

Piederumi

Produkts

EAN code for a single product: 3838400119803
Svars: 1 300 g
Net width: 74 mm
Net height: 151,7 mm
Net depth: 87,5 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895809609
Basic packaging weight: 4,05 kg
Basic Packaging Dimensions Height: 0,103 m
Basic Packaging Dimensions Width: 0,244 m
Basic Packaging Dimensions Depth: 0,164 m
Basic packaging volume: 0,004 m³

Transporta iepakojums

Transport packaging quantity: 15 pcs
EAN code for a transport packaging: 3838895809616
Transport packaging weight: 20,8 kg
Transport Packaging Dimensions Height: 0,23 m
Transport Packaging Dimensions Width: 0,38 m
Transport Packaging Dimensions Depth: 0,38 m
Transport packaging volume: 0,033 m³
Pallet quantity: 360 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH3
Rated voltage AC: 690
Power loss at rated current: 50 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 630 A
Utilization category: aM (switchgear protection)
