004110316 Novecojis

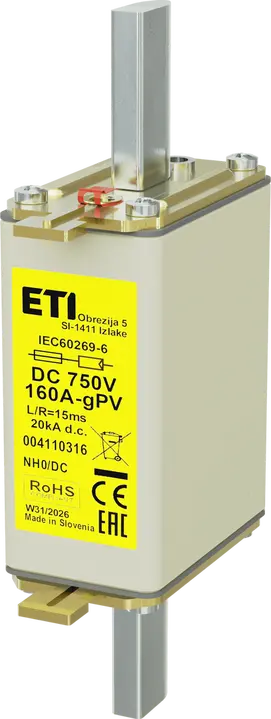

*NH0 gPV 160A/750V DC Drošinātājs

ETI kods:: 004110316
Tips:: NH
Izmērs:: NH0
Nominālā strāva:: 160 A
Raksturlielumi:: gPV
Indikators:: Viršutinis saugiklio būsenos indikatorius
Nominālais līdzstrāvas spriegums:: 750 V
Atjungimo geba (DC) (kA):: 20 kA
L/R (ms):: 15 ms
Pd (W):: 32 W
Džoula integrālis (A2s):: 13 060
Darbības džoula integrālis(A2s):: 27 220
Standarti:: IEC 60269-6
Pieteikums:: Fuse link for DC application

Piederumi

Produkts

EAN code for a single product: 3838895757658
Svars: 290 g
Net width: 29 mm
Net height: 124 mm
Net depth: 59,5 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895468516
Basic packaging weight: 0,905 kg
Basic Packaging Dimensions Height: 0,066 m
Basic Packaging Dimensions Width: 0,093 m
Basic Packaging Dimensions Depth: 0,138 m
Basic packaging volume: 0,001 m³

Transporta iepakojums

Transport packaging quantity: 45 pcs
EAN code for a transport packaging: 3838895565413
Transport packaging weight: 13,919 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 2 340 pcs
Customs tariff: 85361090

Voltage type: DC
Fuse construction type according to IEC 60269: NH0
Power loss at rated current: 32 W
Rated switching capacity DC: 20 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 160 A
Rated voltage DC: 750
Utilization category: gPV (photovoltaic protection)

ETIM klasifikācija – versija 9.0
