NH fuse-links with gPV (general Photovoltaic) characteristics are specifically designed for protecting photovoltaic (PV) systems against overcurrent conditions. These fuse-links ensure the safety and reliability of solar power installations by isolating fault currents, preventing damage to PV panels, inverters, and associated wiring.

Šis produkts ir novecojis, un tam nav tieša aizstājēja. Lūdzu, sazinieties ar mūsu tehnisko atbalstu, lai atrastu piemērotu aizstājēju.

004110619 Novecojis

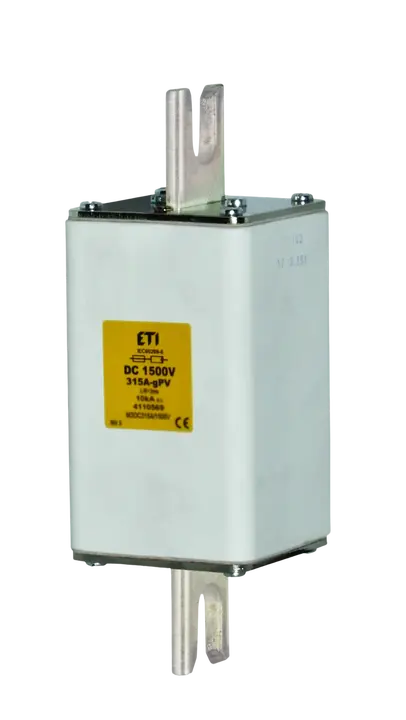

Attēls no *NHU3L gPV 400A/1500V DC

*NHU3L gPV 400A/1500V DC Drošinātājs

ETI kods:: 004110619
Nominālais maiņstrāvas spriegums:: 1500 V
Tips:: NH
Izmērs:: NH3L
Nominālā strāva:: 400 A
Raksturlielumi:: gPV
Indikators:: Viršutinis saugiklio būsenos indikatorius
Nominālais līdzstrāvas spriegums:: 1500 V
Atjungimo geba (DC) (kA):: 30 kA
L/R (ms):: 3 ms
Jaudas izkliede (0,7xIn) (W):: 35 W
Pd (W):: 86 W
Džoula integrālis (A2s):: 40 000
Darbības džoula integrālis(A2s):: 165 000
UL sertificēts:: E347771
Standarti:: IEC 60269-6, UL 248-19
Pieteikums:: Fuse-link for DC application

Produkts

Svars: 1 980 g
Net width: 73 mm
Net height: 198 mm
Net depth: 73 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895737650
Basic packaging weight: 1,36 kg
Basic packaging volume: 1,39 dm³

Transporta iepakojums

Transport packaging quantity: 9 pcs
EAN code for a transport packaging: 3838895737667
Transport packaging weight: 12,475 kg
Transport packaging volume: 16,98 dm³
Pallet quantity: 468 pcs
Customs tariff: 85351000

Rated switching capacity AC: 30 kA
Voltage type: DC
Rated voltage AC: 1 500 V
Type of fuse status indicator: Top fuse status indicator
Rated current: 400 A
Utilization category: gPV (photovoltaic protection)

ETIM klasifikācija – versija 9.0
