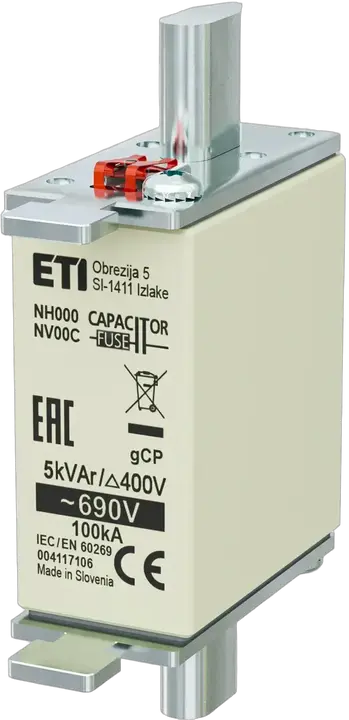

NH000 gCP 5kVAr/690V Drošinātājs

ETI kods:: 004117106
Tips:: NH
Izmērs:: NH000
Raksturlielumi:: gCP
Reaktīvā jauda:: 5 kVAr
Indikators:: Viršutinis saugiklio būsenos indikatorius
Nominālais maiņstrāvas spriegums:: 690 V
Atjungimo geba (AC) (kA):: 100 kA
Pd (W):: 1,7 W
Standarti:: IEC 60269
Pieteikums:: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Piederumi

Produkts

EAN code for a single product: 3838400063069
Svars: 120 g
Net width: 21 mm
Net height: 78,6 mm
Net depth: 51,9 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895734826
Basic packaging weight: 0,373 kg
Basic Packaging Dimensions Height: 0,056 m
Basic Packaging Dimensions Width: 0,068 m
Basic Packaging Dimensions Depth: 0,084 m
Basic packaging volume: 0 m³

Transporta iepakojums

Transport packaging quantity: 120 pcs
EAN code for a transport packaging: 3838895734833
Transport packaging weight: 15,286 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 6 240 pcs
Customs tariff: 85361050

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH000
Rated voltage AC: 690
Power loss at rated current: 1,7 W
Type of fuse status indicator: Top fuse status indicator
Utilization category: Other

ETIM klasifikācija – versija 9.0
