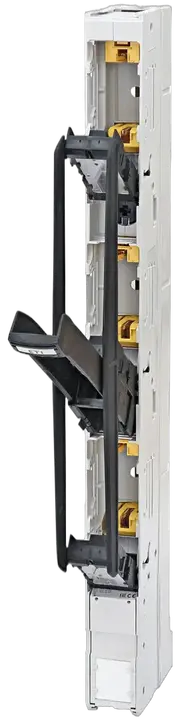

SL00 3P M8 800AC Vertikālais blokslēdzis

ETI kods:: 001690861
Pd (W):: 12 W
Pārsprieguma kategorija:: III
Standarti:: IEC 61943-1, IEC 60947-3
Pieteikums:: With NH 800V fuse links for cable protection on 800V a.c. system voltage
Tips:: NH
Izmērs:: NH00
Nominālā strāva:: 160 A
Nominālais maiņstrāvas spriegums:: 800 V
Tips:: NH

Piederumi

Produkts

Svars: 1,79 kg
Net width: 50 mm
Net height: 662 mm
Net depth: 150 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895836889
Transport packaging weight: 2,149 kg
Transport Packaging Dimensions Height: 165 mm
Transport Packaging Dimensions Width: 663 mm
Transport Packaging Dimensions Depth: 55 mm
Transport packaging volume: 6,017 dm³
Pallet quantity: 126 pcs
Customs tariff: 85363090

Release indication: None
Distance between rail centre, 185 mm: Jā
Max. rated operation voltage Ue AC: 800 V
Model: Fuse switch disconnector
Rated permanent current Iu: 160 A
Conditioned rated short-circuit current Iq: 30 kA
Type of electrical connection of main circuit: Screw connection
Number of poles: 3
Construction size fuse insert: NH000, NH00

ETIM klasifikācija – versija 9.0
