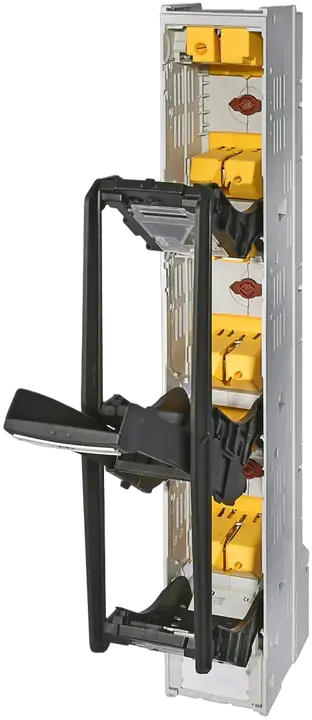

SL1 3P M10 800AC Vertikālais blokslēdzis

ETI kods:: 001690862
Pd (W):: 32 W
Pārsprieguma kategorija:: III
Standarti:: IEC 61943-1, IEC 60947-3
Pieteikums:: With NH 800V fuse links for cable protection on 800V a.c. system voltage
Tips:: NH
Izmērs:: NH1
Nominālā strāva:: 250 A
Nominālais maiņstrāvas spriegums:: 800 V
Tips:: NH

Produkts

Svars: 4,66 kg
Net width: 99 mm
Net height: 762 mm
Net depth: 202 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895836896
Transport packaging weight: 5,157 kg
Transport Packaging Dimensions Height: 205 mm
Transport Packaging Dimensions Width: 764 mm
Transport Packaging Dimensions Depth: 100 mm
Transport packaging volume: 15,662 dm³
Pallet quantity: 50 pcs
Customs tariff: 85363090

Release indication: None
Distance between rail centre, 185 mm: Jā
Max. rated operation voltage Ue AC: 800 V
Model: Fuse switch disconnector
Rated permanent current Iu: 250 A
Conditioned rated short-circuit current Iq: 50 kA
Type of electrical connection of main circuit: Screw connection
Number of poles: 3
Construction size fuse insert: NH1

ETIM klasifikācija – versija 9.0
