DIN rail distribution blocks EDB provide a safe and organized solution for connecting and distributing electrical power in low-voltage applications. These blocks are designed for mounting on standard DIN rails, ensuring compatibility with various electrical enclosures and panels. They feature a robust construction and offer numerous advantages for efficient and reliable power distribution.

001102310

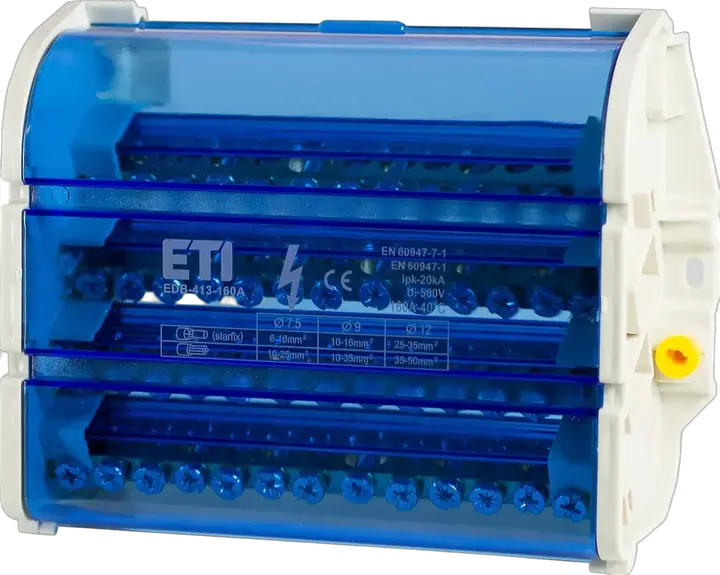

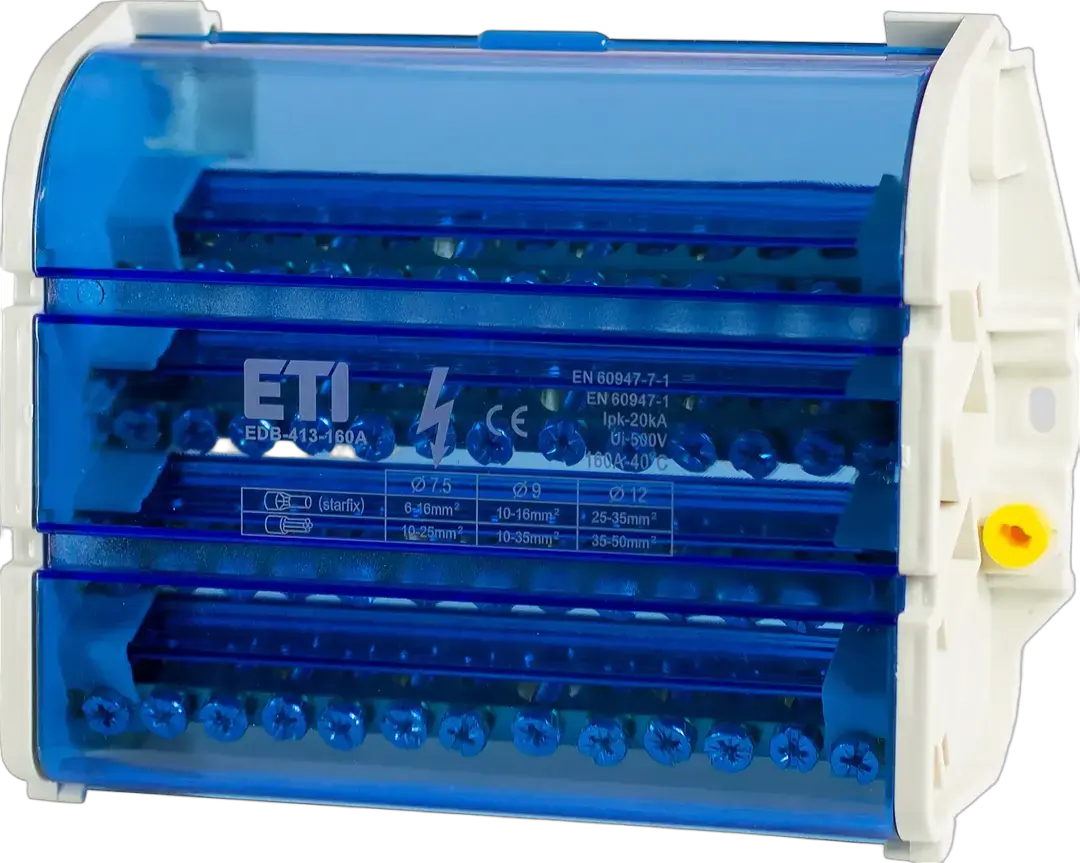

Attēls no EDB-413-160A

EDB-413-160A Sadales bloks

ETI kods:: 001102310
Montāžas veids:: TH 35
Nominālā strāva:: 160 A
Nominālais maiņstrāvas spriegums:: 400 V
Nominālais līdzstrāvas spriegums:: 400 V
Nominālais izolācijas spriegums (V):: 500 V
Īsslēguma jauda:: 20 kA
Spaiļu skaits:: 4x13
Augstums:: 73 mm
Platums:: 180 mm
Dziļums:: 138 mm
Nominālais šķērsgriezums:: 6-35 mm²
Korpusa materiāls:: PA
Skavas materiāls:: MO-57
Darba temperatūra:: -30-85 °C

Produkts

Svars: 0,7 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400000309
Basic packaging weight: 0,9 kg
Basic packaging volume: 1,8 dm³

Transporta iepakojums

Transport packaging quantity: 20 pcs
EAN code for a transport packaging: 3838400000316
Transport packaging weight: 18 kg
Transport packaging volume: 55,1 dm³
Pallet quantity: 400 pcs
Customs tariff: 85369010

Width: 138 mm
Transparent: Jā
Rated current In: 160 A
Mounting method: Other
Type of electrical connection 1: Screw connection
Number of poles: 4
Number of clamp positions per pole: 13
Depth: 138 mm
Rated voltage: 400 V
Colour: Other
Height: 73 mm
Connectable conductor cross section fine-strand with cable end sleeve(Min): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 50 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Max): 35 mm²

ETIM klasifikācija – versija 9.0
