DIN rail distribution blocks EDB provide a safe and organized solution for connecting and distributing electrical power in low-voltage applications. These blocks are designed for mounting on standard DIN rails, ensuring compatibility with various electrical enclosures and panels. They feature a robust construction and offer numerous advantages for efficient and reliable power distribution.

001102311

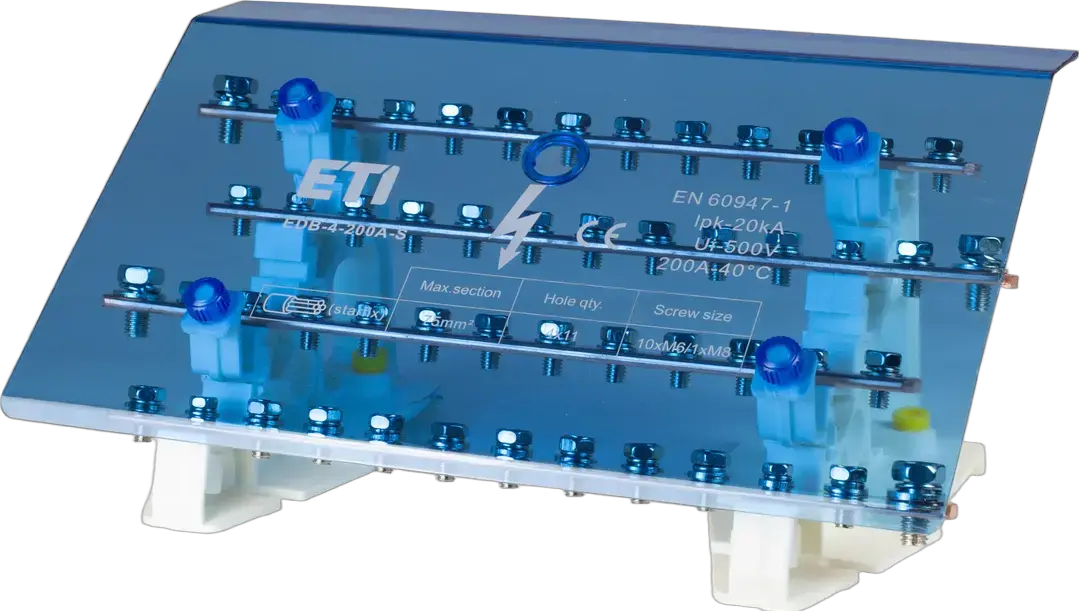

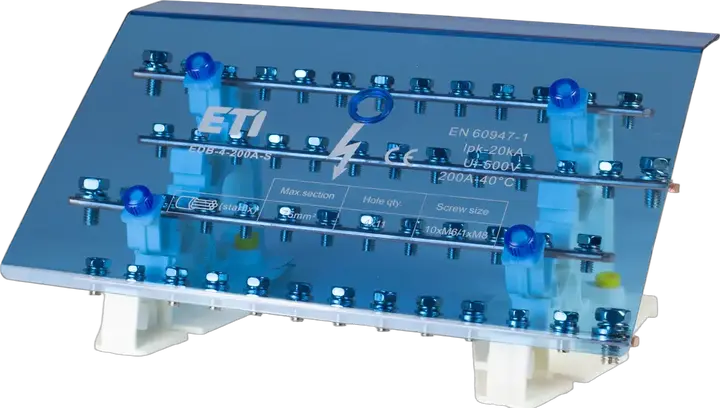

Attēls no EDB-4-200A-S

EDB-4-200A-S Sadales bloks

ETI kods:: 001102311
Montāžas veids:: TH 35
Nominālā strāva:: 200 A
Nominālais maiņstrāvas spriegums:: 400 V
Nominālais līdzstrāvas spriegums:: 400 V
Nominālais izolācijas spriegums (V):: 500 V
Īsslēguma jauda:: 20 kA
Spaiļu skaits:: 4x11
Augstums:: 122 mm
Platums:: 273 mm
Dziļums:: 170 mm
Korpusa materiāls:: PA
Darba temperatūra:: -30-110 °C

Produkts

Svars: 1 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400000323
Basic packaging weight: 1,2 kg
Basic packaging volume: 2,63 dm³

Transporta iepakojums

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838400000330
Transport packaging weight: 12 kg
Transport packaging volume: 65,45 dm³
Pallet quantity: 200 pcs
Customs tariff: 85369010

Width: 170 mm
Transparent: Jā
Material insulation body: Thermoplastic
Rated current In: 200 A
Mounting method: Other
Type of electrical connection 1: Screw connection
Number of poles: 4
Number of clamp positions per pole: 11
Depth: 170 mm
Rated voltage: 400 V
Colour: White
Height: 122 mm
Connectable conductor cross section multi-wired(Max): 75 mm²

ETIM klasifikācija – versija 9.0
