Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921123

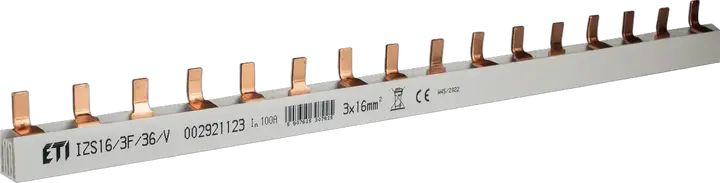

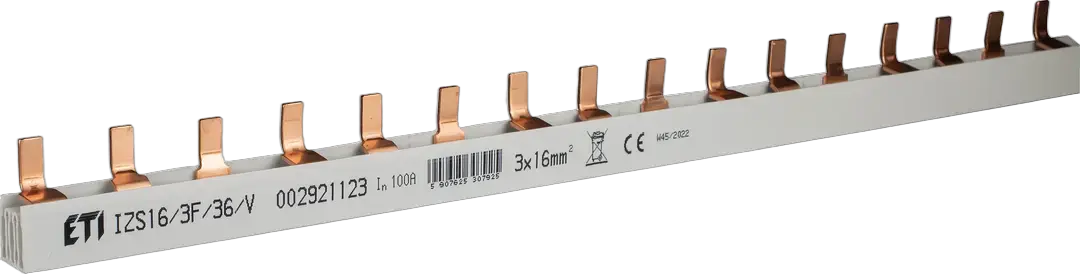

Attēls no IZS16/3F/36/V (1m)

IZS16/3F/36/V (1m) Izolēta kopne

ETI kods:: 002921123
Lai lietotu ar:: ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10, ETIMAT SM, STVD02, EFD 14
Kataloga grupa 1:: Izoliuotos sujungimo šynos IZ
Tips:: Pin type
Funkcija:: Section rails
Tips:: PIN
Nominālā strāva:: 100 A
Nominālais šķērsgriezums:: 16 mm²
Garums moduļos:: 1x36
Fāžu skaits:: 3
Nominālais maiņstrāvas spriegums:: 500 V
Nominālais līdzstrāvas spriegums:: 500 V
Aksesuāru tips:: Section rails

Tehnisko datu katalogs

Produkts

Svars: 700 g
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 5907625307925
Basic packaging weight: 0,7 kg
Basic packaging volume: 0,6 dm³

Transporta iepakojums

Transport packaging quantity: 20 pcs
EAN code for a transport packaging: 5907625307932
Transport packaging weight: 14 kg
Transport packaging volume: 12 dm³
Pallet quantity: 1 140 pcs
Customs tariff: 85389099

Cross section: 16 mm²
Number of phases: 3
Rated permanent current Iu: 100 A
Module width: 27 mm
Length: 1 000 mm
Max. rated operation voltage Ue: 500 V
Insulated: Jā
Type of electric connection: Pin

ETIM klasifikācija – versija 9.0
