Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921130

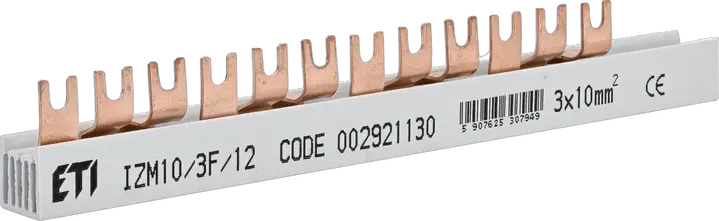

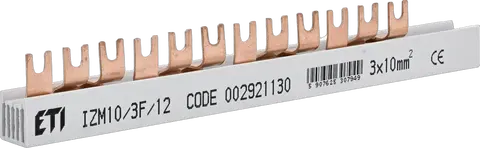

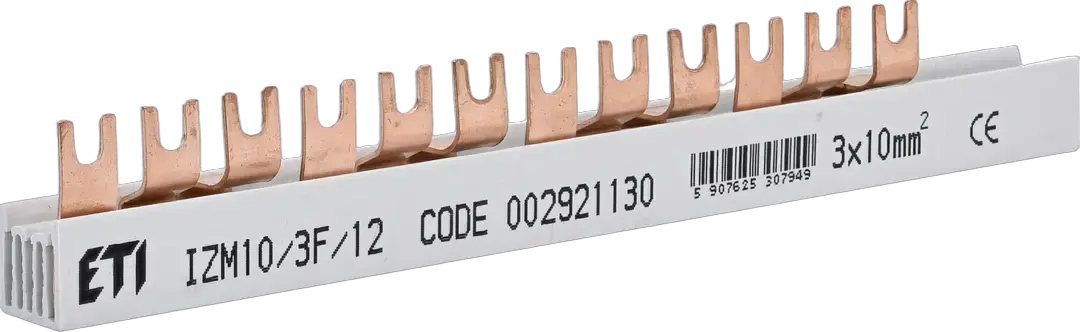

Attēls no IZM10/3F/12

IZM10/3F/12 Izolēta kopne

ETI kods:: 002921130
Lai lietotu ar:: MPE 25, MS25
Kataloga grupa 1:: Izoliuotos sujungimo šynos IZ
Tips:: Fork Type
Funkcija:: Section rails
Tips:: FORK
Nominālā strāva:: 63 A
Nominālais šķērsgriezums:: 10 mm²
Garums moduļos:: 1x12
Fāžu skaits:: 3
Nominālais maiņstrāvas spriegums:: 500 V
Nominālais līdzstrāvas spriegums:: 500 V
Aksesuāru tips:: Section rails

Tehnisko datu katalogs

Produkts

EAN code for a single product: 5907625307949
Svars: 140 g
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 20 pcs
EAN code for a basic packaging: 5907625307956
Basic packaging weight: 2,4 kg
Basic packaging volume: 0,002 dm³

Transporta iepakojums

Transport packaging quantity: 180 pcs
EAN code for a transport packaging: 5907625307963
Transport packaging weight: 21,6 kg
Transport packaging volume: 19,8 dm³
Pallet quantity: 6 660 pcs
Customs tariff: 85389099

Cross section: 10 mm²
Number of phases: 3
Rated permanent current Iu: 63 A
Module width: 15 mm
Length: 210 mm
Max. rated operation voltage Ue: 500 V
Insulated: Jā
Type of electric connection: Fork

ETIM klasifikācija – versija 9.0
