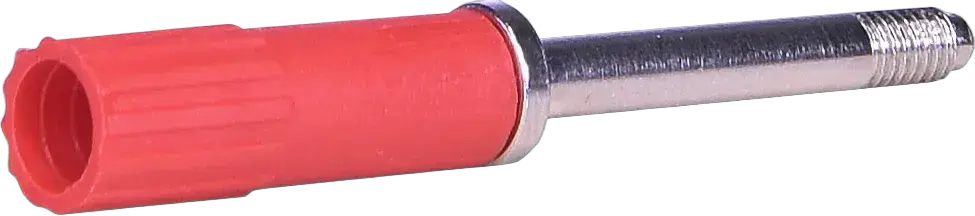

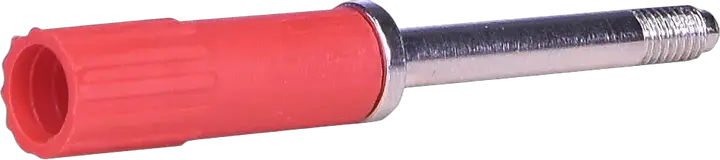

ESC-PSD/P Montāžas skavas

ETI kods:: 003903225

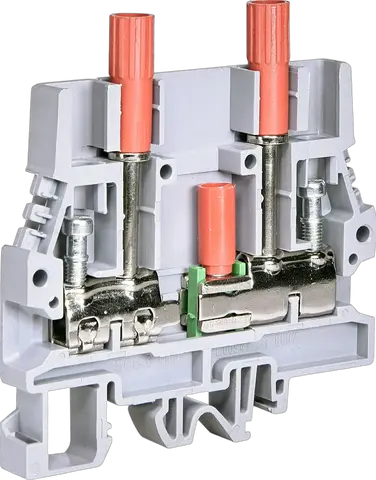

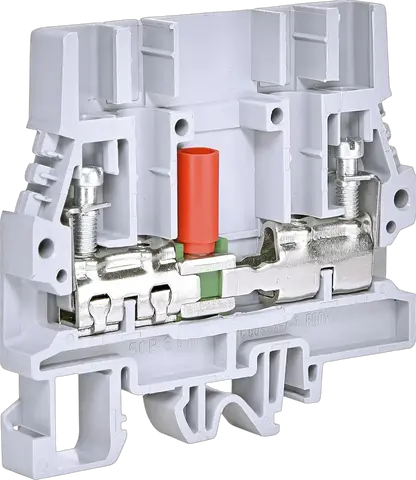

Lai lietotu ar:: ESC-SCB.6
Kataloga grupa 1:: ES varžtiniai laidų gnybtai

Piederumi

Produkts

EAN code for a single product: 3838895861249
Svars: 0,004 kg
Net width: 7,2 mm
Net height: 7,2 mm
Net depth: 49 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3838895830801
Transport packaging weight: 0,205 kg
Transport Packaging Dimensions Height: 10 mm
Transport Packaging Dimensions Width: 80 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 0,12 dm³
Pallet quantity: 146 300 pcs
Customs tariff: 85389099

Tackable: Jā
Number of poles: 1
Rated voltage: 800 V
Type of electric connection: Plug-in connection
Connectable conductor cross section solid-core(Min): 0,5 mm²
Connectable conductor cross section multi-wired(Min): 0,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,5 mm²
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Max): 6 mm²

ETIM klasifikācija – versija 9.0
