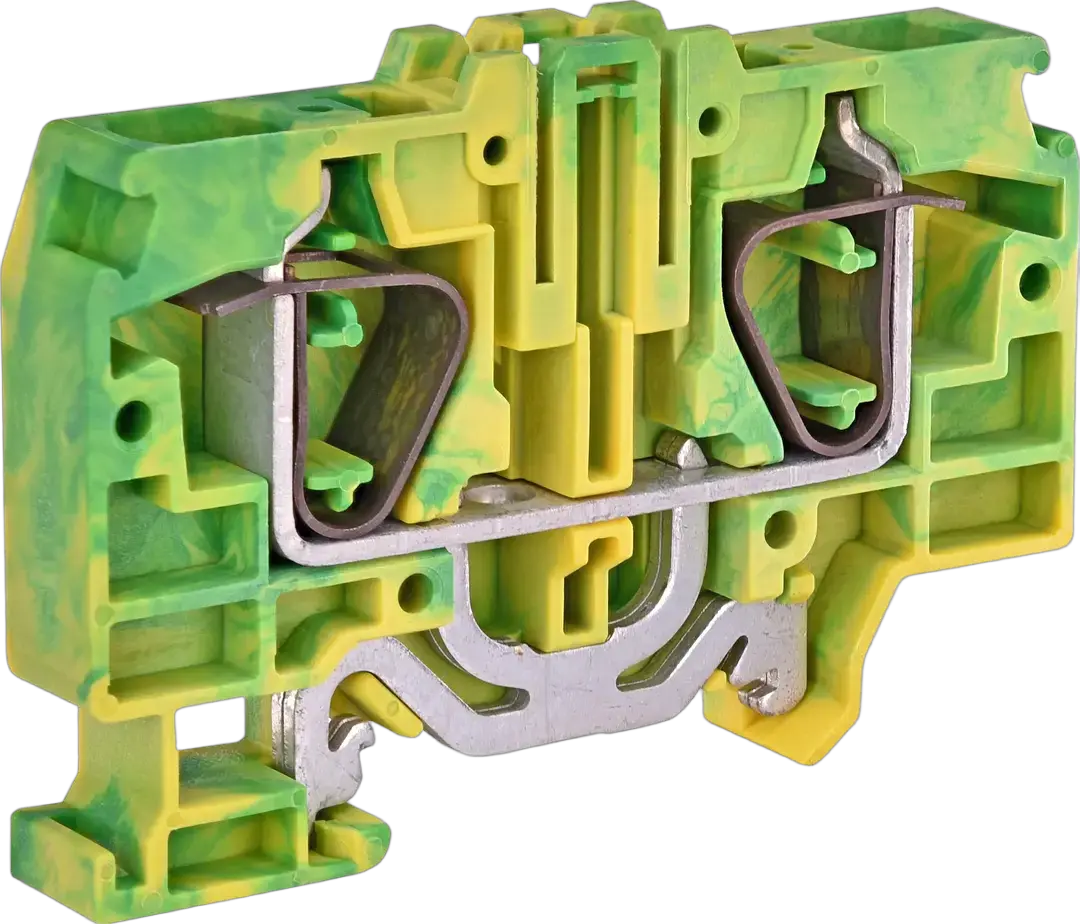

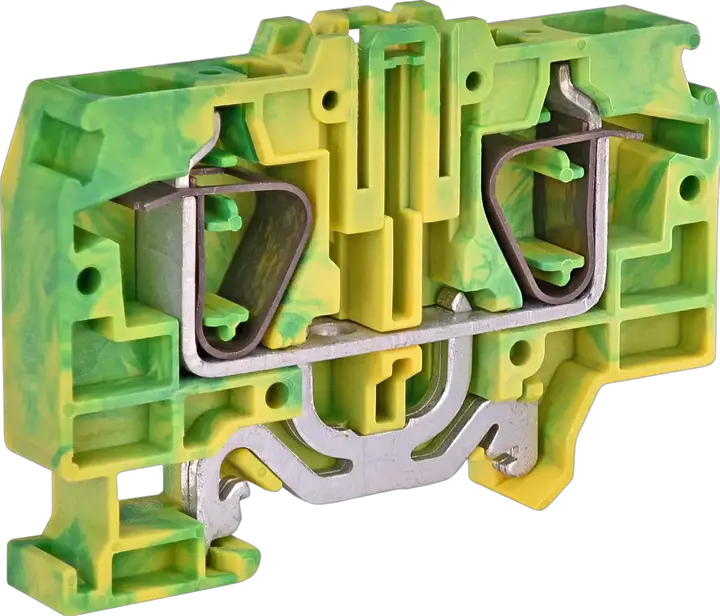

ESP-HTE.16 Zemējuma savienojumi

ETI kods:: 003903195
Kataloga grupa 1:: ES spyruokliniai laidų gnybtai
Montāžas veids:: TH 35
Tips:: ES Spring Clamp Terminal Blocks
Līmenis:: Viengubas
Krāsa:: Geltonas, Žalias
Nominālais šķērsgriezums:: 16 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 12 kV
Šķērssavienojums:: No
Nepieciešama beigu sadaļa:: Yes

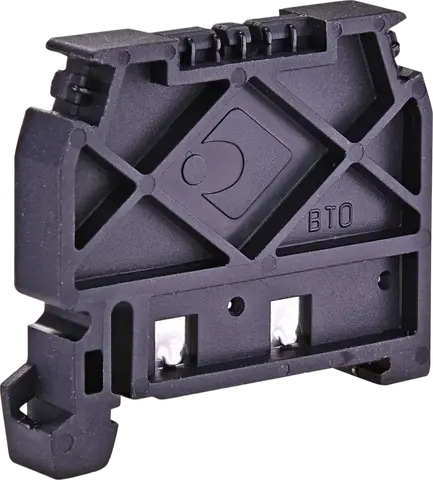

Piederumi

Produkts

EAN code for a single product: 3838895862680
Svars: 24 g
Net width: 12 mm
Net height: 80 mm
Net depth: 55,5 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 30 pcs
EAN code for a transport packaging: 3838895789895
Transport packaging weight: 1,47 kg
Transport Packaging Dimensions Height: 90 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 100 mm
Transport packaging volume: 2,61 dm³
Pallet quantity: 10 560 pcs
Customs tariff: 85369010

Width: 12 mm
Material insulation body: Thermoplastic
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Jā
Type of electrical connection 2: Spring clamp connection
Colour: Green/yellow
Height: 56 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section multi-wired(Min): 1,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 16 mm²

ETIM klasifikācija – versija 9.0
