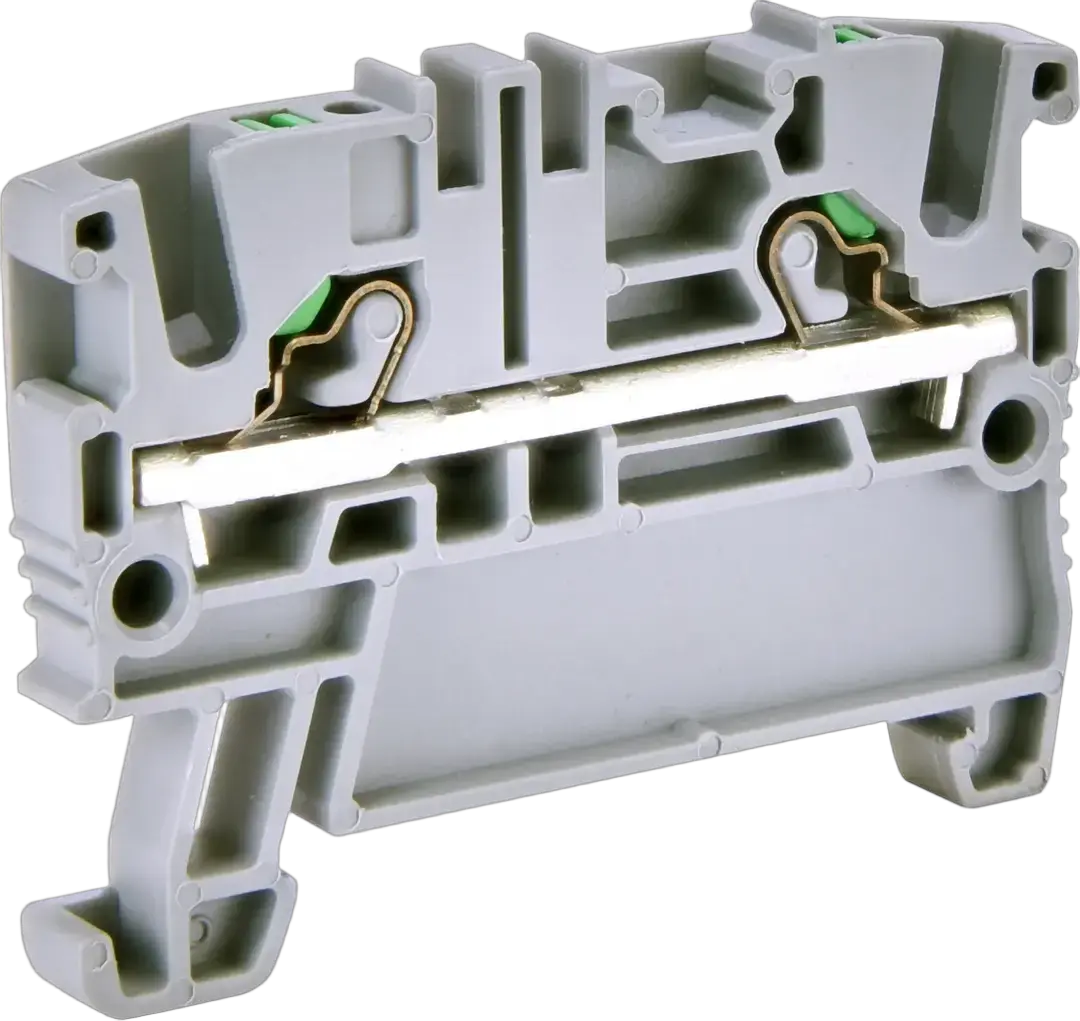

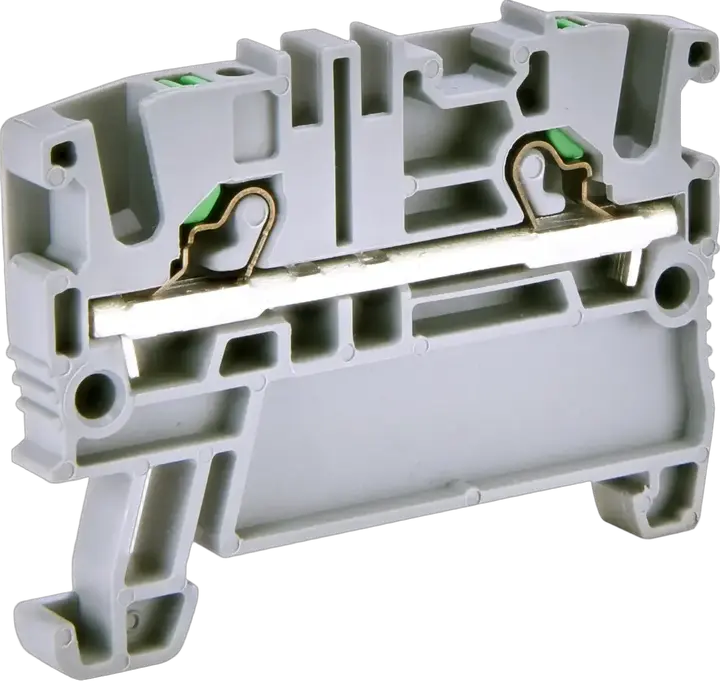

ESH-EFC.2 Montāžas skavas

ETI kods:: 003903251
Nominālais maiņstrāvas spriegums:: 800 V
Nominālais līdzstrāvas spriegums:: 800 V
Kataloga grupa 1:: ESH įstumiami spyruokliniai laidų gnybtai
Montāžas veids:: TH 35
Tips:: ESH Push-in Spring Clamp Terminal Blocks
Līmenis:: Viengubas
Krāsa:: Pilkas
Nominālais šķērsgriezums:: 2.5 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 6 kV
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 24 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 2-4 mm²
Šķērssavienojums:: Yes
Nepieciešama beigu sadaļa:: Yes

Piederumi

Produkts

EAN code for a single product: 3838895869511
Svars: 0,006 kg
Net width: 5,2 mm
Net height: 50 mm
Net depth: 37,7 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 160 pcs
EAN code for a transport packaging: 3838895869528
Transport packaging weight: 1,068 kg
Transport Packaging Dimensions Height: 55 mm
Transport Packaging Dimensions Width: 240 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,98 dm³
Pallet quantity: 72 000 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Jā
Width: 5,2 mm
Material insulation body: Other
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Jā
Type of electrical connection 2: Spring clamp connection
Rated voltage: 800 V
Colour: Grey
Height: 39,2 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 2,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 110 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 4,2 mm²

ETIM klasifikācija – versija 9.0
