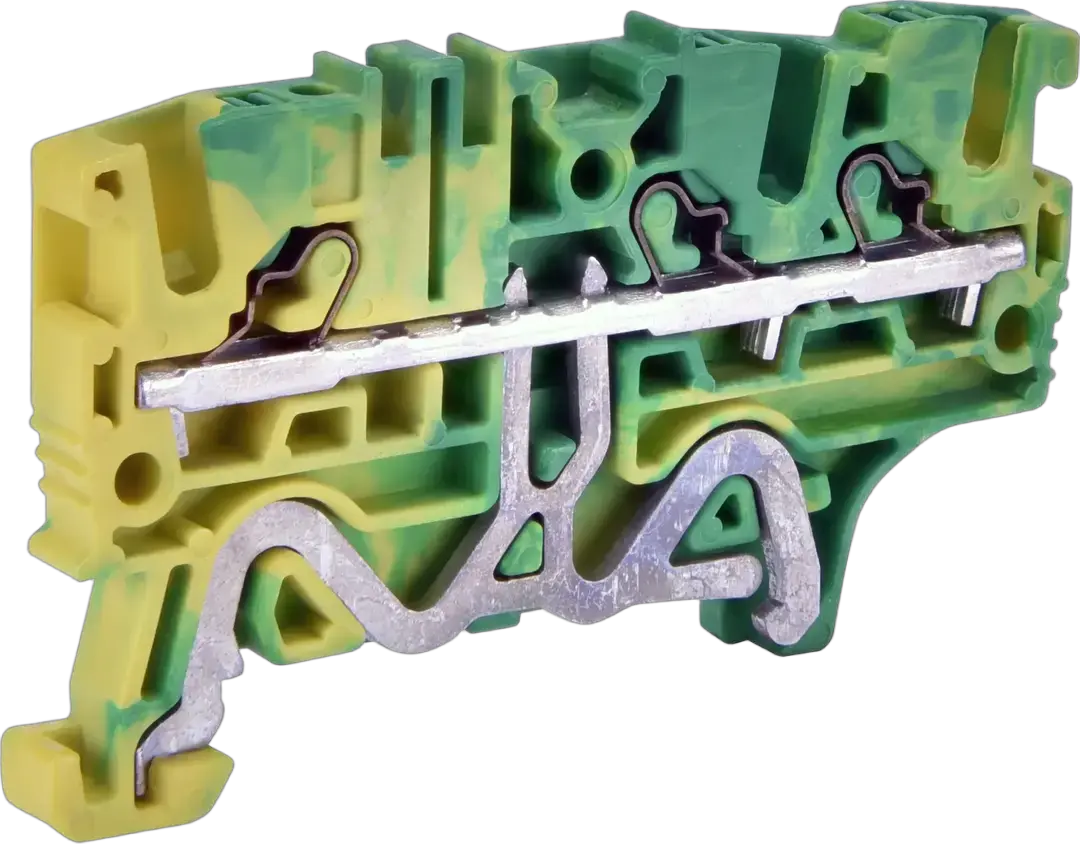

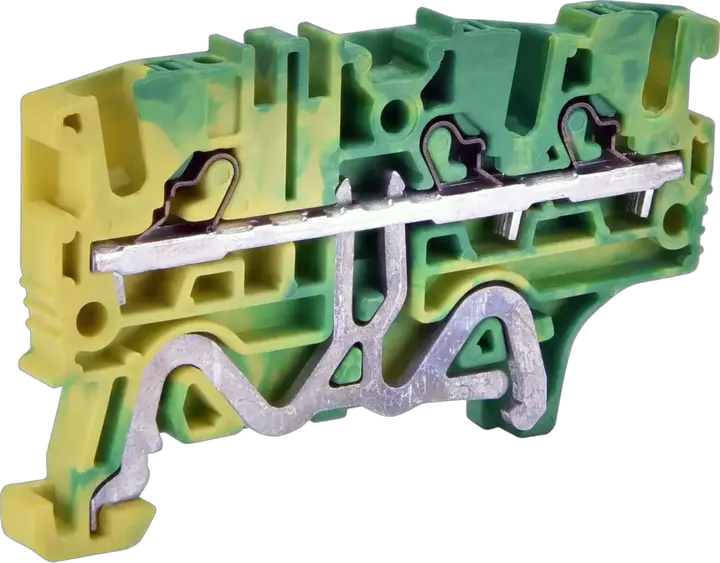

ESH-EFCE.2/1+2 Zemējuma savienojumi

ETI kods:: 003903274
Lai lietotu ar:: push-in spring clamp
Funkcionālie piederumi:: Red partitions
Kataloga grupa 1:: ESH įstumiami spyruokliniai laidų gnybtai
Montāžas veids:: TH 35
Tips:: ESH Push-in Spring Clamp Terminal Blocks
Līmenis:: Viengubas
Krāsa:: Geltonas, Žalias
Nominālais šķērsgriezums:: 2 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 6 kV
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 2-4 mm²
Šķērssavienojums:: Yes
Nepieciešama beigu sadaļa:: Yes

Piederumi

Produkts

EAN code for a single product: 3838895869979
Svars: 0,011 kg
Net width: 5,2 mm
Net height: 64,8 mm
Net depth: 38,7 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3838895869986
Transport packaging weight: 0,613 kg
Transport Packaging Dimensions Height: 85 mm
Transport Packaging Dimensions Width: 160 mm
Transport Packaging Dimensions Depth: 100 mm
Transport packaging volume: 1,36 dm³
Pallet quantity: 33 000 pcs
Customs tariff: 85369010

Width: 5,2 mm
Material insulation body: Other
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 3
Closing plate required: Jā
Type of electrical connection 2: Spring clamp connection
Colour: Green/yellow
Height: 39,2 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 110 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2,5 mm²

ETIM klasifikācija – versija 9.0
