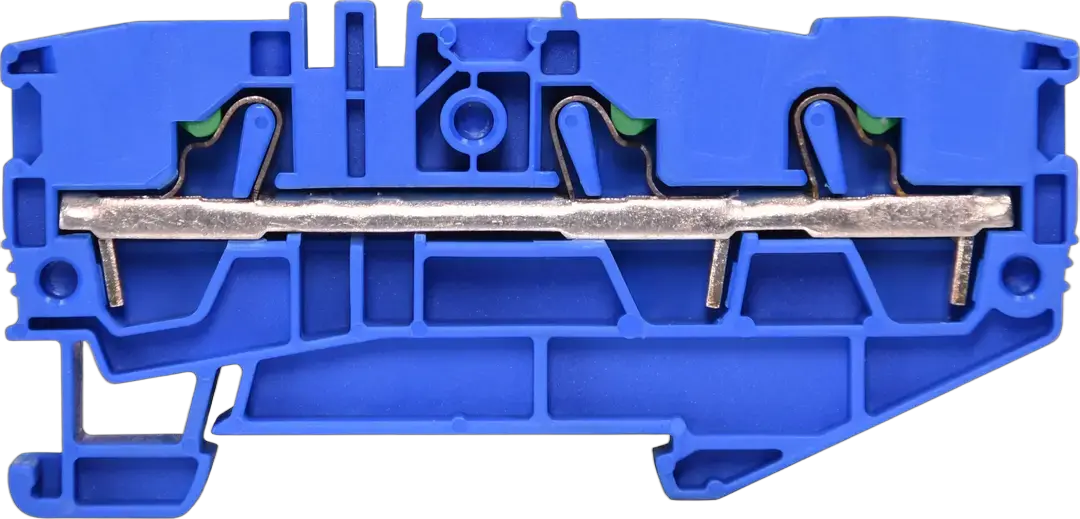

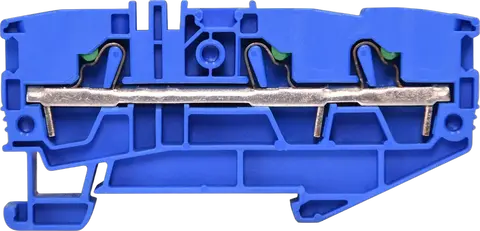

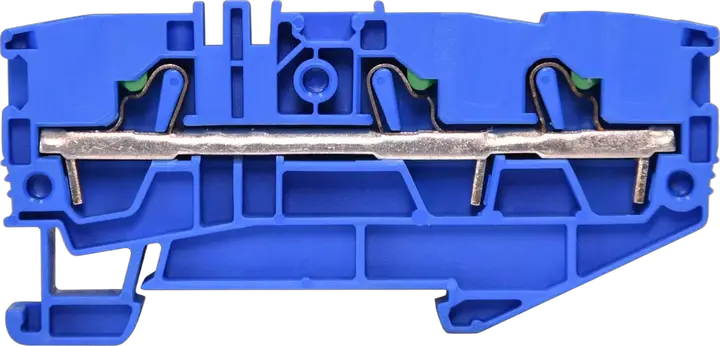

ESH-EFC.6/1+2/B Nulles klemme

ETI kods:: 003903351
Nominālais maiņstrāvas spriegums:: 1000 V
Nominālais līdzstrāvas spriegums:: 1000 V
Montāžas veids:: TH 35
Tips:: ESH Push-in Spring Clamp Terminal Blocks
Līmenis:: viengubas
Krāsa:: Mėlynas
Nominālais impulsa izturības spriegums Uimp (kV):: 8 kV
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 41 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 210 mm²
Šķērssavienojums:: Yes
Nepieciešama beigu sadaļa:: Yes

Produkts

EAN code for a single product: 3838400117823
Svars: 0,022 kg
Net width: 16 mm
Net height: 85 mm
Net depth: 33 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 20 pcs
EAN code for a transport packaging: 3838400104472
Transport packaging weight: 0,44 kg
Transport Packaging Dimensions Height: 70 mm
Transport Packaging Dimensions Width: 150 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,575 dm³
Pallet quantity: 11 200 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Jā
Width: 8,2 mm
Material insulation body: Thermoplastic
Rated current In: 41 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 3
Closing plate required: Jā
Type of electrical connection 2: Spring clamp connection
Rated voltage: 1 000 V
Colour: Blue
Height: 46,7 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 130 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 10 mm²

ETIM klasifikācija – versija 9.0
