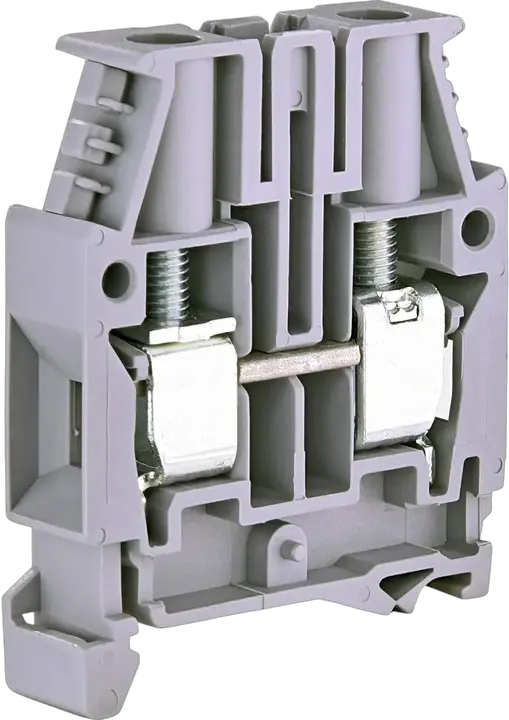

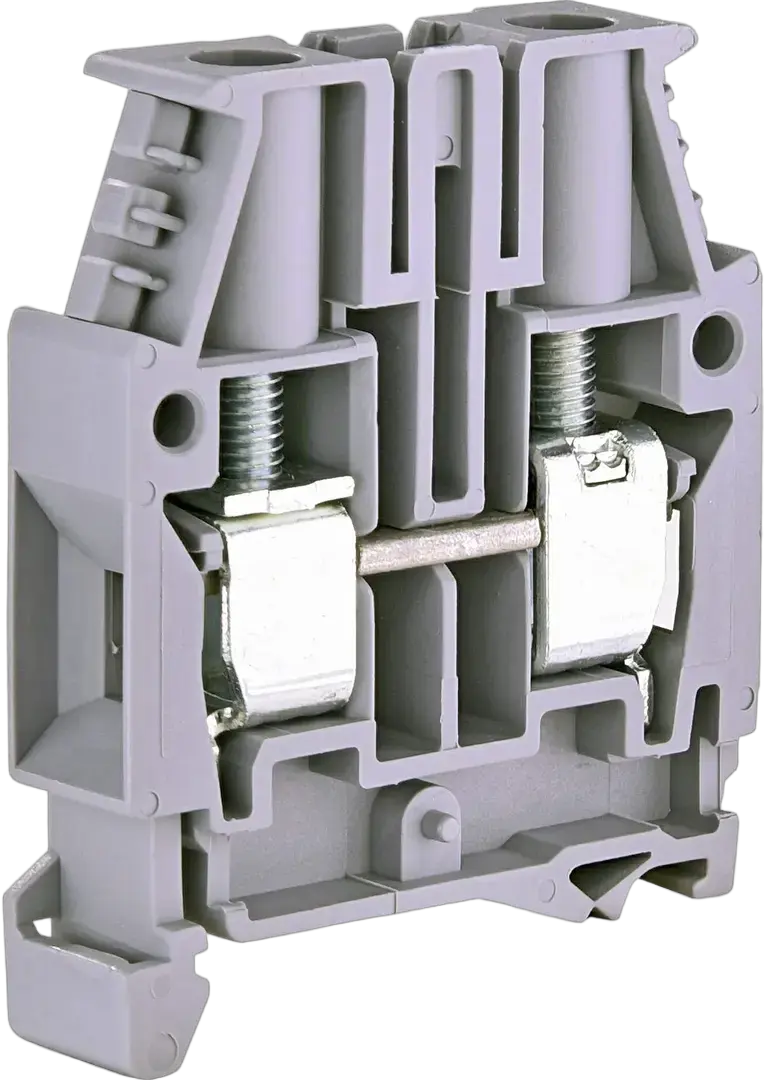

ESC-CBC.10 Montāžas skavas

ETI kods:: 003903003
Nominālais maiņstrāvas spriegums:: 1000 V
Nominālais līdzstrāvas spriegums:: 1000 V
Kataloga grupa 1:: ES varžtiniai laidų gnybtai
Montāžas veids:: TH 35
Tips:: ES Screw Type Terminal Blocks
Līmenis:: Viengubas
Krāsa:: Pilkas
Nominālais šķērsgriezums:: 10 mm²
Nominālais impulsa izturības spriegums Uimp (kV):: 12 kV
Maksimālā strāva ar nominālo šķērsgriezumu (mm2):: 57 mm²
Maksimālā strāva ar maksimālo šķērsgriezumu (mm2):: 85 mm²
Savienojams vadītāja šķērsgriezums - ciets kodols (mm2):: 1.5-16 mm²
Šķērssavienojums:: Yes
Nepieciešama beigu sadaļa:: Yes

Piederumi

Produkts

EAN code for a single product: 3838895859642
Svars: 20,5 g
Net width: 10 mm
Net height: 42,5 mm
Net depth: 50,5 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 100 pcs
EAN code for a transport packaging: 3838895787938
Transport packaging weight: 2,016 kg
Transport Packaging Dimensions Height: 50 mm
Transport Packaging Dimensions Width: 300 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 3,15 dm³
Pallet quantity: 24 000 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Jā
Width: 10 mm
Material insulation body: Thermoplastic
Rated current In: 85 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Internally connected stages: Jā
Number of clamp positions per level: 2
Closing plate required: Jā
Type of electrical connection 2: Screw connection
Rated voltage: 1 000 V
Colour: Grey
Height: 52 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section multi-wired(Min): 1,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 16 mm²
Connectable conductor cross section multi-wired(Max): 16 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 10 mm²
