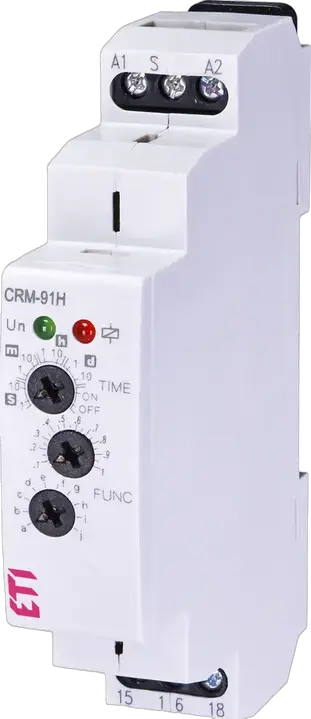

CRM-91H UNI Laika relejs

ETI kods:: 002470001
Laiko intervalas:: 0.1 s-10 days
Funkcija:: Time relay
Pieteikums:: Lighting, heating, motor and fan control, as well as industrial and building automation applications.
Kontroles veids:: Multifunction timer
Barošanas spriegums (V):: 12-240 V
Sprieguma veids:: AC/DC
Max contact current (A):: 16 A
Nominālā strāva:: 16 A
Nominālā frekvence (Hz):: 50/60 Hz
Maksimālā kravnesība AC1 (VA):: 4 000 VA
Clamping cross-section (mm²):: 1.5-2.5 mm²
Montāžas veids:: DIN rail 35 mm
IP aizsardzība:: IP40
NO kontaktu skaits:: 1
Kontaktu skaits:: 1
NO/NC kontaktu skaits:: 1

Produkts

Svars: 0,076 kg
Net width: 17,5 mm
Net height: 91,3 mm
Net depth: 64,09 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 8594030338292
Basic packaging weight: 0,07 kg
Basic Packaging Dimensions Height: 25 mm
Basic Packaging Dimensions Width: 97 mm
Basic Packaging Dimensions Depth: 70 mm
Basic packaging volume: 0,17 dm³

Transporta iepakojums

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895231196
Transport packaging weight: 0,755 kg
Transport Packaging Dimensions Height: 102 mm
Transport Packaging Dimensions Width: 284 mm
Transport Packaging Dimensions Depth: 75 mm
Transport packaging volume: 2,173 dm³
Pallet quantity: 4 600 pcs
Customs tariff: 85364900

1st interval unit: Seconds/hours
Mounting method: DIN rail
Voltage type (supply voltage): AC/DC
Type of excitation: Digital with multi function
Built-in height: 65 mm
Number of changeover switches: 1
Function: Multi function
Width in number of modular spacings: 1
Supply voltage(Min): 12 V
1st interval(Min): 0,1
Supply voltage(Max): 240 V
1st interval(Max): 240

ETIM klasifikācija – versija 9.0
