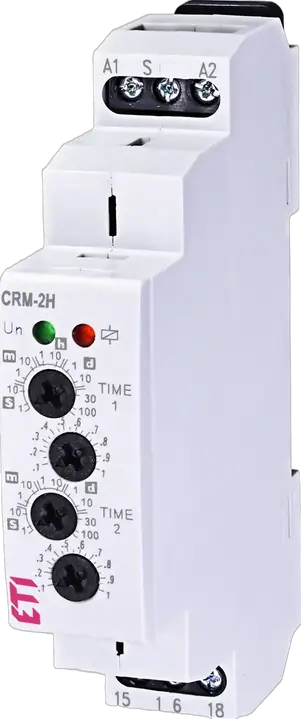

CRM-2H UNI Laika relejs

ETI kods:: 002470003
Kategorija:: Asymmetric Time relay CRM-2H
Kataloga grupa 1:: Foto ir laiptinės relės
Kataloga grupa 2:: Time relay
Montāžas veids:: TH 35
Laiko intervalas:: 0.1 s-100 days
Tips:: Asymmetric Time relay CRM-2H
Sprieguma veids:: AC/DC
Kontaktu skaits:: 1
Kontaktu skaits:: 1
Funkcija:: Time relay
Maksimālā kravnesība AC1 (VA):: 4 000 VA
Funkciju skaits:: 2
Barošanas spriegums (V):: 12-240 V
Nominālā strāva:: 16 A

Produkts

Svars: 0,083 kg
Net width: 17,5 mm
Net height: 91,3 mm
Net depth: 64,09 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 8594030338322
Basic packaging weight: 0,083 kg
Basic Packaging Dimensions Height: 25 mm
Basic Packaging Dimensions Width: 97 mm
Basic Packaging Dimensions Depth: 70 mm
Basic packaging volume: 0,17 dm³

Transporta iepakojums

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895231219
Transport packaging weight: 0,833 kg
Transport Packaging Dimensions Height: 102 mm
Transport Packaging Dimensions Width: 284 mm
Transport Packaging Dimensions Depth: 75 mm
Transport packaging volume: 2,173 dm³
Pallet quantity: 4 600 pcs
Customs tariff: 85364900

1st interval unit: Minutes/hours
2nd interval unit: Minutes/hours
Mounting method: DIN rail
Voltage type (supply voltage): AC/DC
Type of excitation: Digital with single function
Built-in height: 65 mm
Number of changeover switches: 1
Nominal switching current at 250 V AC: 16 A
Type of control voltage 2: AC
Type of control voltage 1: AC/DC
Function: On/off-switch wiping relay
Width in number of modular spacings: 1
Control voltage 2(Min): 240 V
Frequency control voltage 2(Min): 50 Hz
2nd interval(Min): 0,02
Control voltage 1(Min): 12 V
1st interval(Min): 0,02
Frequency control voltage 1(Min): 50 Hz
2nd interval(Max): 2 400
Control voltage 2(Max): 240 V
Control voltage 1(Max): 12 V
Frequency control voltage 1(Max): 50 Hz
1st interval(Max): 2 400
Frequency control voltage 2(Max): 60 Hz

ETIM klasifikācija – versija 9.0
