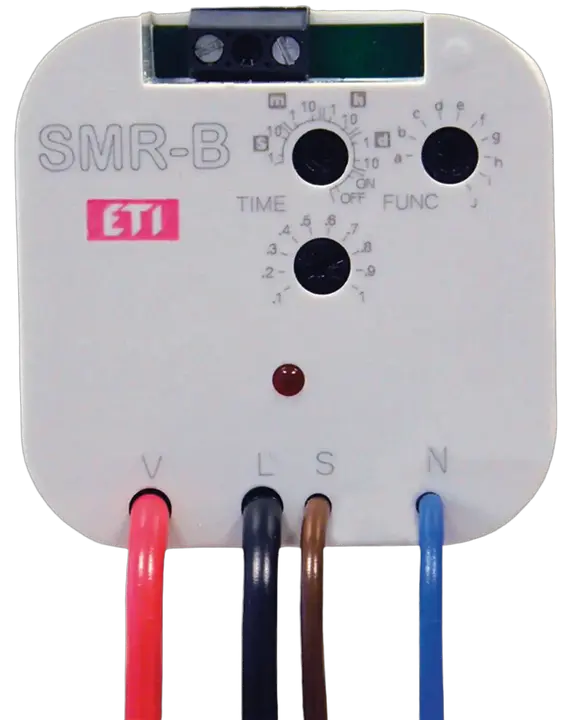

SMR-B Laika relejs

ETI kods:: 002470021
Augstums:: 49 mm
Platums:: 49 mm
Kategorija:: Multifunction relay SMR-T, SMR-H, SMR-B
Kataloga grupa 1:: Laiko relė (analoginė)
Kataloga grupa 2:: Multifunction relay
Laiko intervalas:: 0.1 s-10 days
Tips:: Multifunction relay SMR-T, SMR-H, SMR-B
Sprieguma veids:: AC
Kontaktu skaits:: 1
Funkcija:: Time relay
Maksimālā kravnesība AC1 (VA):: 4 000 VA
Funkciju skaits:: 10
NO kontaktu skaits:: 1
Barošanas spriegums (V):: 230 V
Nominālā strāva:: 16 A

Produkts

Svars: 0,051 kg
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895452218
Basic packaging weight: 0,07 kg
Basic Packaging Dimensions Height: 102 mm
Basic Packaging Dimensions Width: 82 mm
Basic Packaging Dimensions Depth: 39 mm
Basic packaging volume: 0,326 dm³

Transporta iepakojums

Transport packaging quantity: 14 pcs
EAN code for a transport packaging: 3838895452225
Transport packaging weight: 0,71 kg
Transport packaging volume: 5,2 dm³
Pallet quantity: 42 910 pcs
Customs tariff: 85364900

Width: 49 mm
Nominal current: 16 A
Function delay-on energization: Jā
Voltage type (operating voltage): AC
Function floating contact on energization: Jā
Voltage type for actuating: AC
Number of outputs, undelayed, normally open contact: 1
Depth: 13,3 mm
Type of electric connection: Soldering flag connection
Function delay on de-energization: Jā
Height: 49 mm
Function floating contact on de-energization: Jā
Rated control supply voltage AC 60 Hz(Min): 230 V
Rated control supply voltage AC 50 Hz(Min): 230 V
Time range(Min): 0,1 s
Rated control supply voltage AC 60 Hz(Max): 230 V
Time range(Max): 864 000
Rated control supply voltage AC 50 Hz(Max): 230 V

ETIM klasifikācija – versija 9.0
