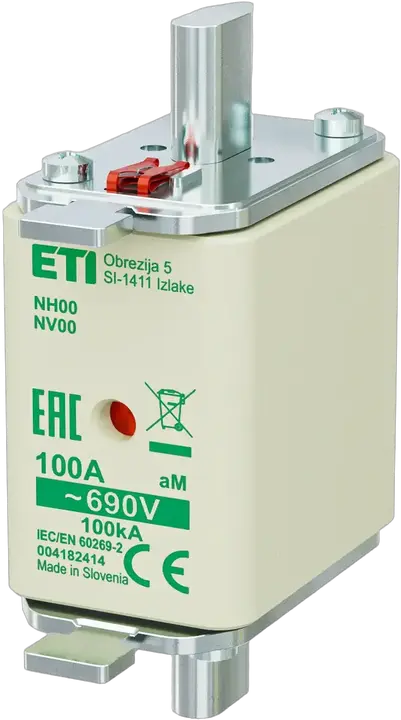

NH00 aM 100A/690V Drošinātājs

ETI kods:: 004182414
Tips:: NH
Izmērs:: NH00
Nominālā strāva:: 100 A
Raksturlielumi:: aM
Indikators:: Kombinuotas saugiklio būklės indikatorius
Nominālais maiņstrāvas spriegums:: 690 V
Atjungimo geba (AC) (kA):: 100 kA
Pd (W):: 5,8 W
Džoula integrālis (A2s):: 32 600
Darbības džoula integrālis(A2s):: 140 200
Standarti:: VDE 0636-2011
Pieteikums:: For relays, contactors and motors protection in case of short-circuit

Piederumi

Produkts

EAN code for a single product: 5904722947108
Svars: 170 g
Net width: 29,5 mm
Net height: 78,8 mm
Net depth: 56,2 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895352594
Basic packaging weight: 0,533 kg
Basic Packaging Dimensions Height: 0,065 m
Basic Packaging Dimensions Width: 0,094 m
Basic Packaging Dimensions Depth: 0,083 m
Basic packaging volume: 0,001 m³

Transporta iepakojums

Transport packaging quantity: 90 pcs
EAN code for a transport packaging: 3838895352600
Transport packaging weight: 16,352 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 4 680 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH00
Rated voltage AC: 690
Power loss at rated current: 5,8 W
Type of fuse status indicator: Combination fuse status indicator
Rated current: 100 A
Utilization category: aM (switchgear protection)

ETIM klasifikācija – versija 9.0
