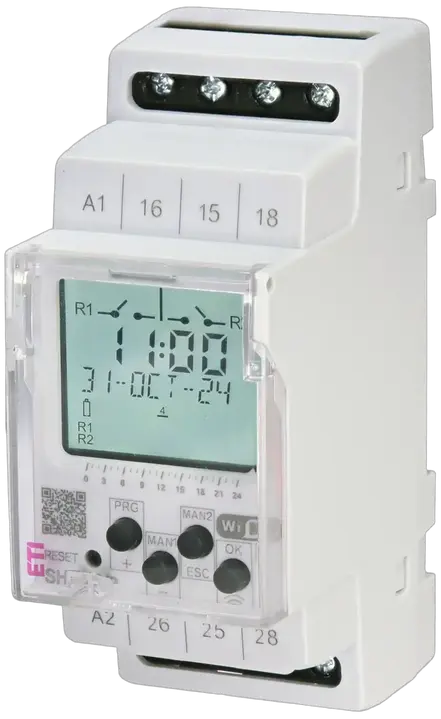

SHT-13/2 UNI Laika relejs, digitālais

ETI kods:: 002470305
Komunikācija:: WiFi
Laiko intervalas:: SUNRISE, SUNSET, FIXED TIME: ON/OFF, REDUC.
Funkcija:: Time relay
Pieteikums:: Lighting control, HVAC systems, illuminated advertising, as well as building and industrial automation applications.
Kontroles veids:: Time
Barošanas spriegums (V):: 24-240 V
Sprieguma veids:: AC/DC
Max contact current (A):: 16 A
Nominālā strāva:: 16 A
Nominālā frekvence (Hz):: 50/60 Hz
Maksimālā kravnesība AC1 (VA):: 4 000 VA
Clamping cross-section (mm²):: 0.5-2.5 mm²
Montāžas veids:: DIN bėgelis
IP aizsardzība:: IP20, IP40
NO kontaktu skaits:: 2
Kontaktu skaits:: 2
NO/NC kontaktu skaits:: 2

Produkts

Svars: 0,287 kg
Net width: 112,6 mm
Net height: 119,9 mm
Net depth: 63,17 mm
Stock unit of measure: pcs

Transporta iepakojums

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838400117106
Transport packaging weight: 0,287 kg
Transport Packaging Dimensions Height: 25 mm
Transport Packaging Dimensions Width: 97 mm
Transport Packaging Dimensions Depth: 70 mm
Transport packaging volume: 0,17 dm³
Pallet quantity: 2 090 pcs
Customs tariff: 85364900

Number of contacts: 2
Impulse program: ✓
Quartz controlled: ✓
Width: 35 mm
Suitable for manual operation: ✓
Number of memory locations: 200
Annual program: ✓
Weekly program: ✓
Astro program: ✓
Number of channels: 2
Degree of protection (IP): IP20
Contact type: Change-over contact (NO/NC)
Mounting method: DIN rail
Automatic switching summer-/winter time: ✓
Accuracy per day: 1 s
Holiday program: ✓
Voltage type (supply voltage): AC/DC
Random program: ✓
Autonomy in hours: 26 280
Shortest switching time channel 2: 1 min
Autonomy in years: 3
Hour meter: ✓
24 h program: ✓
Nominal switching current at 250 V AC: 16 A
External programming: ✓
Depth: 64 mm
Text guidance in display: ✓
Cycle program: ✓
Shortest switching time channel 1: 1 min
Potential free switch contact: ✓
Height: 90 mm
Width in number of modular spacings: 2
60 min program: ✓
Frequency supply voltage(Min): 50 Hz
Supply voltage(Min): 24 V
Frequency supply voltage(Max): 60 Hz
Supply voltage(Max): 230 V

ETIM klasifikācija – versija 9.0
