002472002

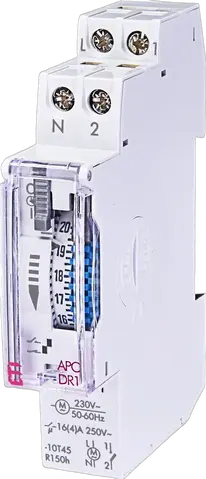

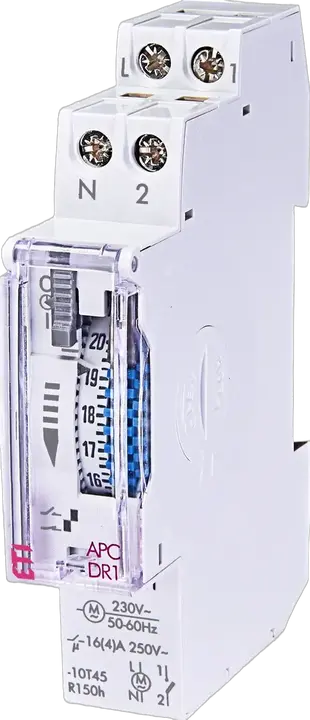

APC-DR1 Laika relejs

ETI kods:: 002472002
Augstums:: 90 mm
Platums:: 17,5 mm
Kategorija:: Analog Electromechanical time switch APC-D1, APC-DR1
Kataloga grupa 1:: Laiko relė (analoginė)
Kataloga grupa 2:: Time switch
Montāžas veids:: TH 35
IP aizsardzība:: IP20
Laiko intervalas:: 15 min - 24 hours
Tips:: Analog Electromechanical time switch APC-D1, APC-DR1
Kontaktu veids:: 1xNO
Sprieguma veids:: AC
Kontaktu skaits:: 1
Funkcija:: Time relay
Maksimālā kravnesība AC1 (VA):: 4 000 VA
Funkciju skaits:: 1
NO kontaktu skaits:: 1
Barošanas spriegums (V):: 230 V
Nominālā strāva:: 16 A

Produkts

Svars: 0,095 kg
Net width: 17,5 mm
Net height: 91,3 mm
Net depth: 64,12 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 5904722951471
Basic packaging weight: 0,088 kg
Basic Packaging Dimensions Height: 103 mm
Basic Packaging Dimensions Width: 22 mm
Basic Packaging Dimensions Depth: 73 mm
Basic packaging volume: 0,165 dm³

Transporta iepakojums

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895689751
Transport packaging weight: 2,192 kg
Transport Packaging Dimensions Height: 210 mm
Transport Packaging Dimensions Width: 150 mm
Transport Packaging Dimensions Depth: 160 mm
Transport packaging volume: 5,04 dm³
Pallet quantity: 3 600 pcs
Customs tariff: 85364900

Mains synchronous: Jā
Width: 17,5 mm
Suitable for manual operation: Jā
Number of channels: 1
Degree of protection (IP): IP20
Contact type: Normally open contact
Mounting method: DIN rail
Voltage type (supply voltage): AC
Autonomy in hours: 150
24 h program: Jā
Nominal switching current at 250 V AC: 16 A
Depth: 65 mm
Shortest switching time channel 1: 15 min
Potential free switch contact: Jā
Height: 90 mm
Width in number of modular spacings: 1
Frequency supply voltage(Min): 50 Hz
Supply voltage(Min): 230 V
Frequency supply voltage(Max): 50 Hz
Supply voltage(Max): 230 V

ETIM klasifikācija – versija 9.0
