002472051

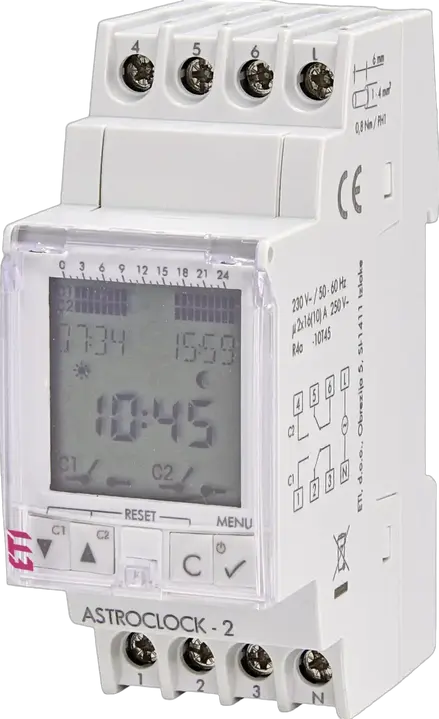

ASTROCLOCK-2 Laika relejs, digitālais

ETI kods:: 002472051
Augstums:: 90 mm
Platums:: 355 mm
Kategorija:: Astronomical time switch ASTROCLOCK 2
Kataloga grupa 1:: Foto relė ir astronominis jungiklis
Kataloga grupa 2:: Astronomical time switch
Montāžas veids:: TH 35
IP aizsardzība:: IP20
Laiko intervalas:: SUNRISE, SUNSET, FIXED TIME: ON/OFF, REDUC.
Tips:: Astronomical time switch ASTROCLOCK 2
Kontaktu veids:: 1xCO
Sprieguma veids:: AC
Kontaktu skaits:: 2
Kontaktu skaits:: 2
Funkcija:: Time relay
Maksimālā kravnesība AC1 (VA):: 4 000 VA
Barošanas spriegums (V):: 230 V
Nominālā strāva:: 16 A

Produkts

Svars: 0,166 kg
Net width: 35 mm
Net height: 91,2 mm
Net depth: 63,32 mm
Stock unit of measure: pcs

Pamata iepakojums

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895717874
Basic packaging weight: 0,166 kg
Basic Packaging Dimensions Height: 95 mm
Basic Packaging Dimensions Width: 42 mm
Basic Packaging Dimensions Depth: 72 mm
Basic packaging volume: 0,287 dm³

Transporta iepakojums

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895717881
Transport packaging weight: 1,68 kg
Transport Packaging Dimensions Height: 210 mm
Transport Packaging Dimensions Width: 150 mm
Transport Packaging Dimensions Depth: 160 mm
Transport packaging volume: 5,04 dm³
Pallet quantity: 1 500 pcs
Customs tariff: 85364900

Max. switching power LED: 90 W
Number of contacts: 2
Quartz controlled: Jā
Width: 35,5 mm
Suitable for manual operation: Jā
Number of memory locations: 40
Weekly program: Jā
Astro program: Jā
Number of channels: 2
Degree of protection (IP): IP20
Contact type: Change-over contact (NO/NC)
Mounting method: DIN rail
Automatic switching summer-/winter time: Jā
Accuracy per day: 1 s
Holiday program: Jā
Voltage type (supply voltage): AC
Autonomy in hours: 48
Shortest switching time channel 2: 0,02 min
Hour meter: Jā
24 h program: Jā
Nominal switching current at 250 V AC: 16 A
Depth: 65 mm
Text guidance in display: Jā
Cycle program: Jā
Shortest switching time channel 1: 0,02 min
Potential free switch contact: Jā
Height: 90 mm
Width in number of modular spacings: 2
60 min program: Jā
Frequency supply voltage(Min): 50 Hz
Supply voltage(Min): 230 V
Frequency supply voltage(Max): 50 Hz
Supply voltage(Max): 230 V

ETIM klasifikācija – versija 9.0
